Hydraulic Speed Reducer – Type 5550

This hydraulic speed reducer gear box can be used to operate a forage wagon, concrete mixer or a belt drive on an agricultural machine

Its features are as follows:

Alternative to Berma RT200
Torque 2000 Nm
Ratio: 1:16.43
Input: hydraulic motor with shaft 25 mm, SAE A flange (e.g. CPRM)
sturdy design of cast iron
higher torque with simple gerotor motor
gear box oil recommendation: SAE 80W-90, 3.5 liters

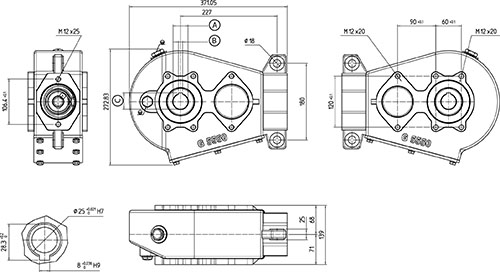

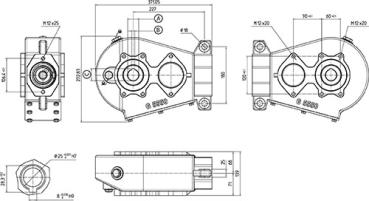

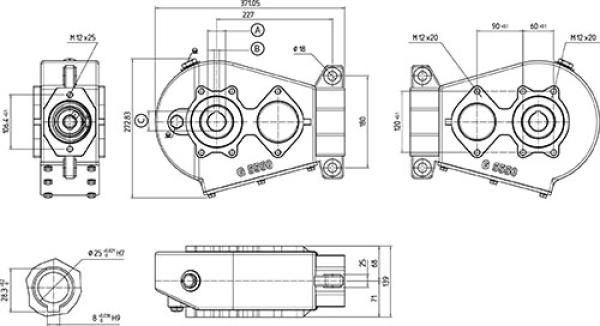

Dimensions:

Dimension Hydraulic Speed Reducer - Type 5550

Output shaft dimensions (please chose when order):

A	B	C
Ø 35 mm	10	38.6
Ø 40 mm	12	43.3
Ø 45 mm	12	48.8

Catalogue download:

Hydraulic component for integration in hydraulic systems
