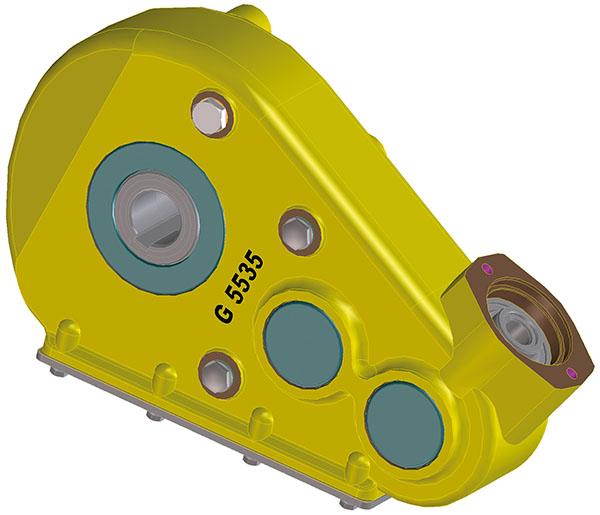

Hydraulic Speed Reducer - Type 5535

Hydraulic Speed Reducer – Type 5535

This hydraulic speed reducer gear box can be used to operate a forage wagon, concrete mixer or a belt drive on an agricultural machine

Its features are as follows:

• Alternative to Berma RT350
• Torque 3500 Nm
• Ratio: 1:12.1
• Input: hydraulic motor with shaft 25 mm, SAE A flange (e.g. CPRM)
• sturdy design of cast iron
• higher torque with simple gerotor motor
• gear box oil recommendation: SAE 80W-90, 4.5 liters

• Ratio 1:24, mounting type on top
• Ratio 1:12, mounting type on one of the side

- Please contact us if you are interested in buying this item! -

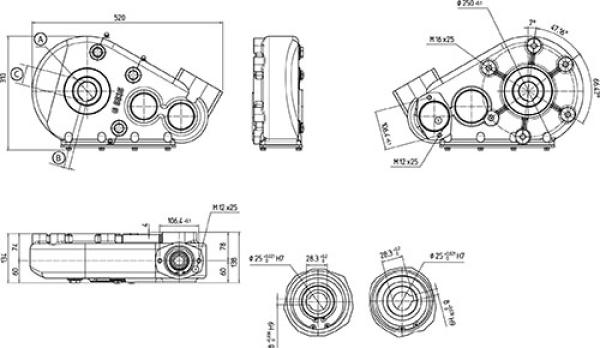

Dimensions:

Output shaft dimensions (please chose when order):

Catalogue download:



Hydraulic component for integration in hydraulic systems
