Hydraulic Speed Reducer - Type 5030

Hydraulic Speed Reducer – Type 5030

This hydraulic speed reducer gear box can be used to operate a forage wagon, concrete mixer or a belt drive on an agricultural machine

Its features are as follows:

• Alternative to Berma RT300
• Torque 3000 Nm
• Ratio: 1:29.5
• Input: hydraulic motor with shaft 25 mm, SAE A flange (e.g. CPRM)
• sturdy design of cast iron
• higher torque with simple gerotor motor
• gear box oil recommendation: SAE 80W-90, 4 liters

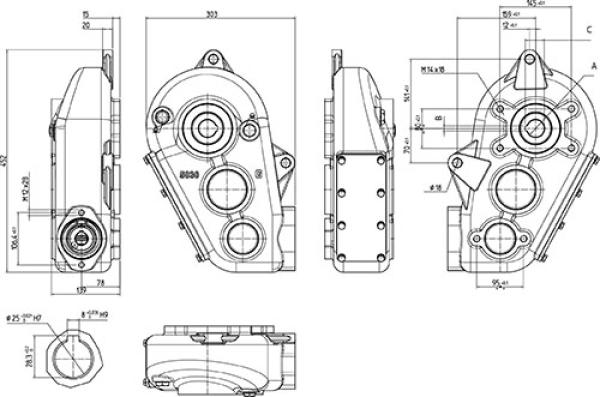

Dimensions:

Output shaft dimensions (please chose when order):

Catalogue download:



Hydraulic component for integration in hydraulic systems
