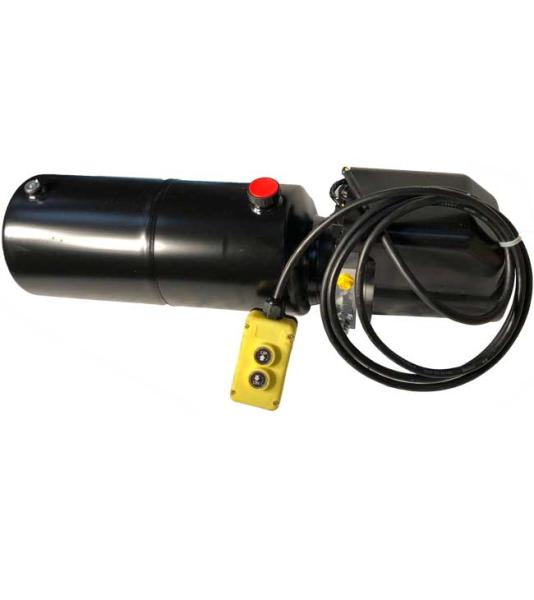

HYDROMOT Hydraulic Power Pack, compact power pack 2kW, 6,5 l/min, 24 Volt, 200 bar, selectable tank size, for single acting use

Hydraulic Power Pack, compact power pack  2kW, 6,5 l/min, 24 Volt, 200 bar, selectable tank size, for single acting use

This hydraulic power pack is characterised by its high quality and its reasonable price.

The hydraulic power pack has the following features:

• Gear pump 2.6 ccm/U (equal 6.5 l/min)
• 24v dc electric motor, 2 kW, 2500 RPM including motor cover
• 2/2 way solenoid valve, 24 Volt
• Max. working pressure: relief valve set at 200 bar
• Plastik oil reservoir, selectable size 8, 10 or 12 liter
• Horizontal mounting
• Oil ports: P 3/8" und T mit 1/4"
• 2 Button detachable pendent on a 3 metre lead

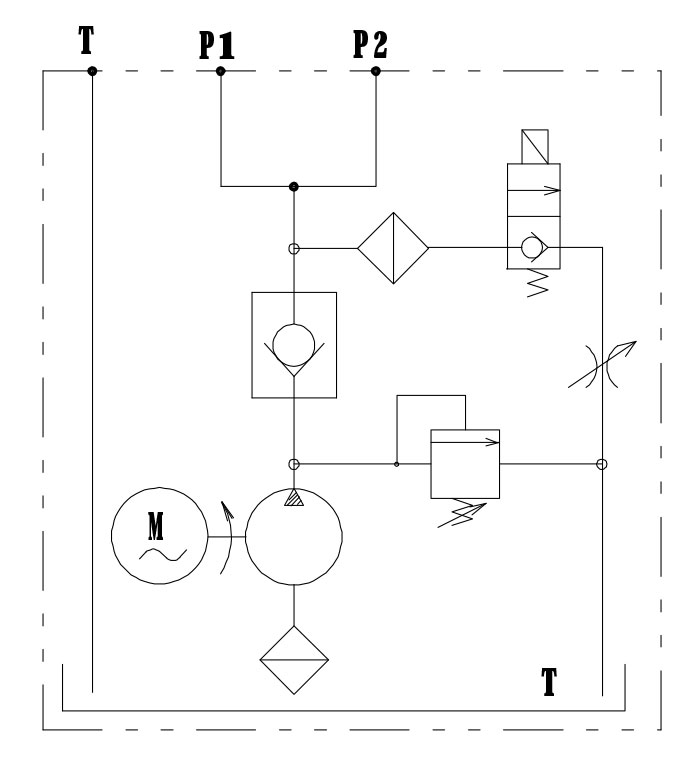

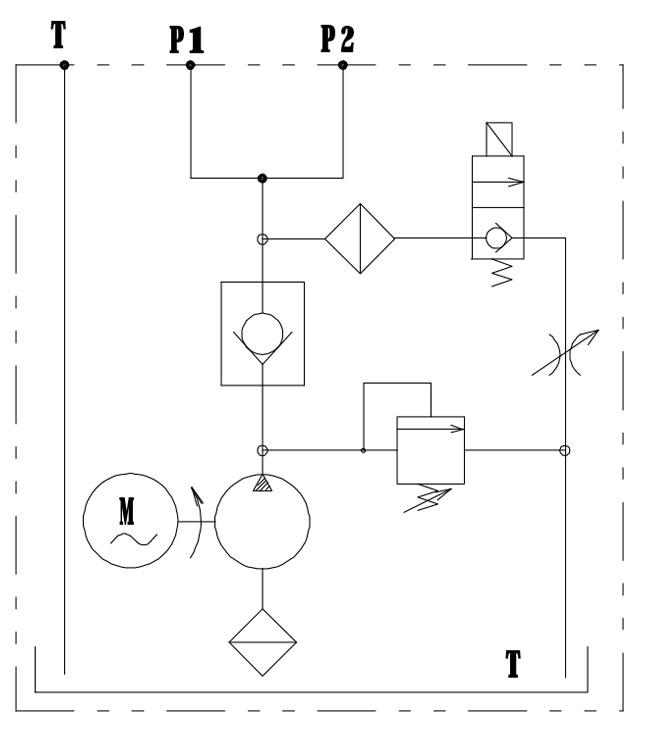

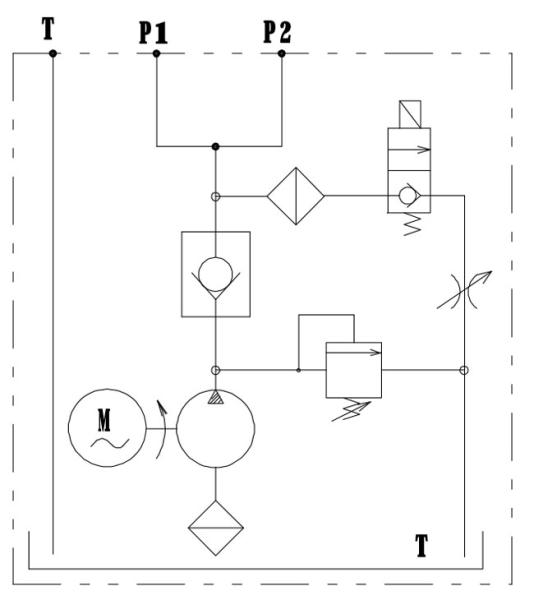

Hydraulic scheme:

Dimension:




Tankgröße / tank size	Maß / Dimension L
8 L	440 mm
10 L	530 mm
12 L	550 mm

Hydraulic component for integration in hydraulic systems
