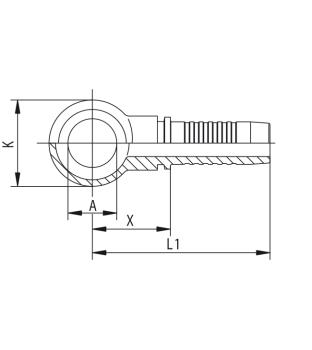

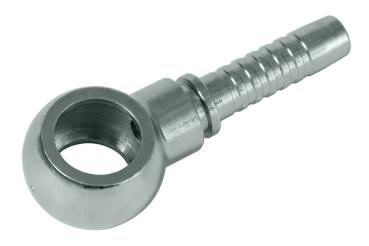

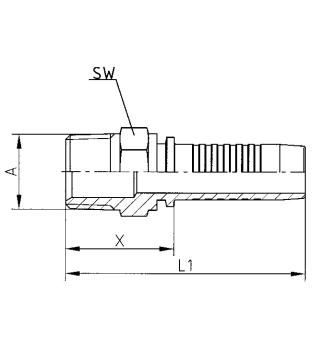

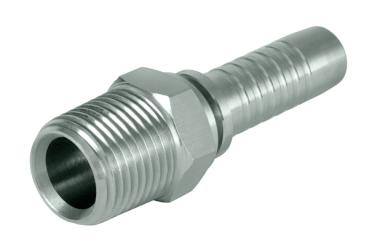

BSP threaded adapter, 60° cone with BSP male thread
A: G 3/4"
L1: 79,3 mm
DN19 / Size 12 / 1/2"
Threaded stem with bore form W (24 °) according to DIN 3861, light series
A: M30x2,0
R: 22L
X: 32,6 mm
L1: 78,6 mm
SW: 30
DN19 / Size 12 / 3/4"
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
A: M36x2,0
R: 25S
X: 37,6 mm
L1: 83,6 mm
SW: 36

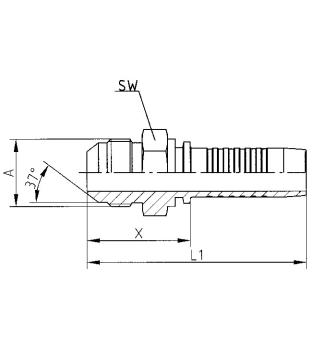

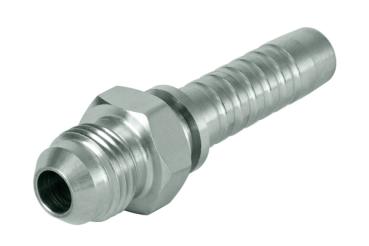

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
A: 1 1/16"-12 UN
L1: 63,0 mm
DN16 / Size 10 / 5/8"
JIC threaded adapter, 74 ° cone with union nut, 45° elbow, UN / UNF thread
A: 1 3/16"-12 UN
X: 75,6 mm
L1: 114,9 mm
H: 31,9 mm (+/- 2,5 mm)
X: 42,2 mm
L1: 80,5 mm
H: 41,0 mm (+/- 2,5 mm)
SW: 32
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
A: M26x1,5
R: 18L
X: 27,5 mm
L1: 66,0 mm
Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 53,9 mm
L1: 92,2 mm
Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 45,7 mm
L1: 84,0 mm
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
R: 20S
X: 31,5 mm
L1: 70,0 mm
Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 50,2 mm
L1: 88,5 mm
Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series
X: 71,6 mm
L1: 117,4 mm
BSP sealing head, 60° cone union with BSP thread
L1: 62,4 mm
BSP sealing head 90°, 60° cone union with BSP thread
A: G 1"
L1: 126,3 mm
DN25 / Size 16 / 1"
Flange head SAE J514 (ISO 6162) standard series 3000 PSI
Flange size: 1 1/4"
D: 50,8 mm
X: 69,4 mm
L1: 129,4 mm
DN31 / Size 20 / 1 1/4"
Flange head SAE J514 (ISO 6162) standard series 3000 PSI, elbow 45°
Flange size: 1 1/2"
D: 60,3 mm
X: 127,5 mm
L1: 195,0 mm
H: 44,0 mm (+/- 2,5 mm)
DN38 / Size 24 / 1 1/2"
{{.}}
{{{.}}}
