Flange head SAE J514 (ISO 6162) standard series 3000 PSI, elbow 90°
Flange size: 1"
D: 44,5 mm
X: 78,5 mm
L1: 138,5 mm
H: 69,0 mm (+/- 2,5 mm)
DN31 / Size 20 / 1 1/4"
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI
Flange size: 1 1/4"
D: 54,0 mm
X: 72,6 mm
L1: 132,6 mm
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 45°
X: 101,0 mm
L1: 161,0 mm
H: 40,0 mm (+/- 2,5 mm)

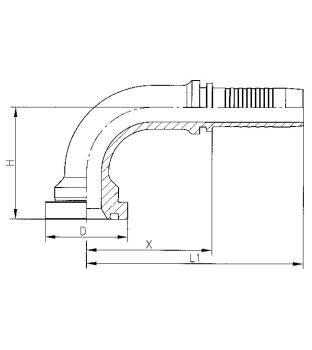

Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 90°
X: 94,0 mm
L1: 161,5 mm
H: 95,5 mm (+/- 2,5 mm)
DN38 / Size 24 / 1 1/2"

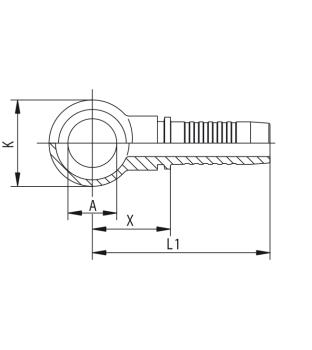

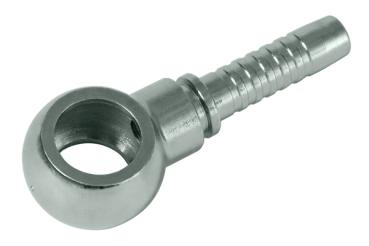

Banjo coupling, metric
Material: Free cutting steel
A: 18,1 mm
X: 29,3 mm
L1: 61,8 mm
K: 32,0 mm
DN12 / Size 8 / 1/2"
JIC threaded adapter, 74 ° cone with UN / UNF thread
A: 1 1/16"-12 UN
L1: 72,2 mm
Threaded adapter with conical NPTF thread
A: 3/4"-14 NPTF
L1: 75,6 mm
DN16 / Size 10 / 5/8"

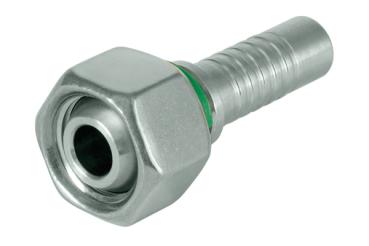

BSP threaded adapter, 60° cone with BSP male thread
A: G 3/4"
L1: 75,9 mm

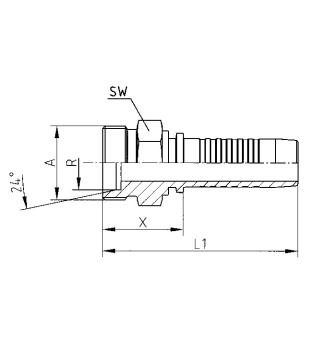

Threaded stem with bore form W (24 °) according to DIN 3861, light series
A: M26x1,5
R: 18L
X: 29,1 mm
L1: 67,6 mm
SW: 27
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
A: M30x2,0
R: 20S
X: 34,6 mm
L1: 80,6 mm
SW: 30
DN19 / Size 12 / 3/4"
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
A: 7/8"-14 UNF
L1: 61,0 mm
JIC threaded adapter, 74 ° cone with union nut, 45° elbow, UN / UNF thread
X: 81,0 mm
L1: 125,3 mm
H: 25,0 mm (+/- 2,5 mm)
SW: 32

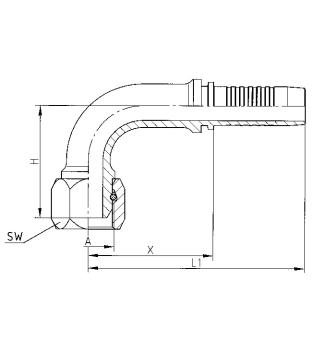

X: 45,7 mm
L1: 84,0 mm
H: 54,0 mm (+/- 2,5 mm)

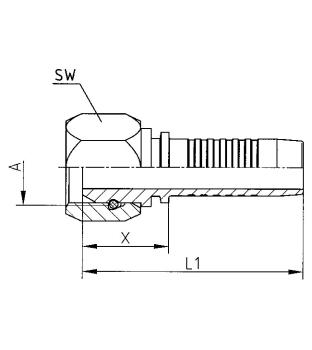

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
A: M22x1,5
R: 15L
X: 24,5 mm
L1: 63,0 mm
Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 55,5 mm
L1: 94,0 mm
Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series
X: 46,5 mm
L1: 85,0 mm
{{.}}
{{{.}}}
