Hose Fittings

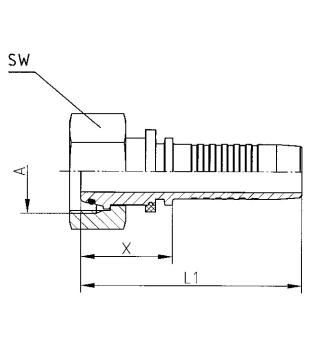

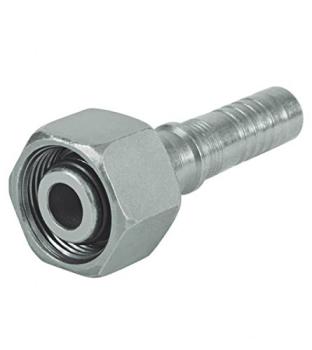

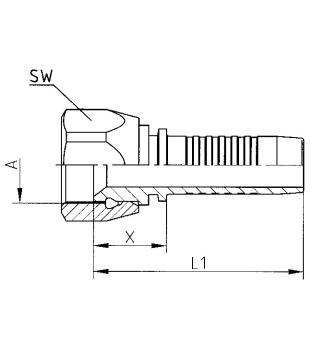

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

A: M22x1,5

R: 15L

X: 23,8 mm

L1: 57,3 mm

SW: 27

DN10 / Size 6 / 3/8"

Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

A: M22x1,5

R: 15L

X: 48,2 mm

L1: 81,7 mm

SW: 27

DN10 / Size 6 / 3/8"

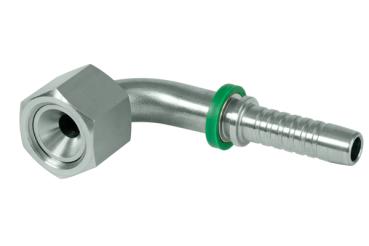

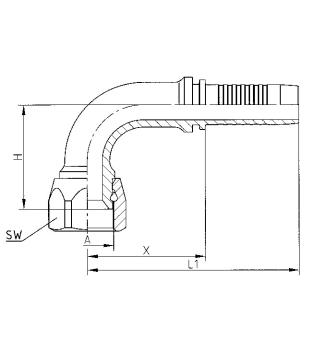

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, light series

A: M22x1,5

R: 15L

X: 39,0 mm

L1: 72,5 mm

SW: 27

DN10 / Size 6 / 3/8"

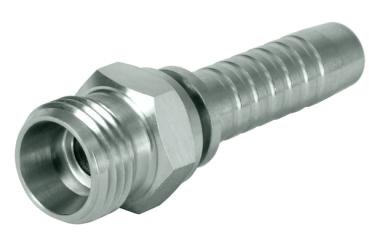

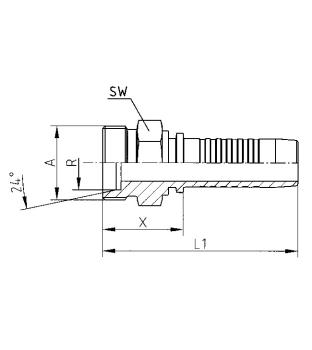

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

A: M24x1,5

R: 16S

X: 31,8 mm

L1: 65,3 mm

SW: 30

DN10 / Size 6 / 3/8"

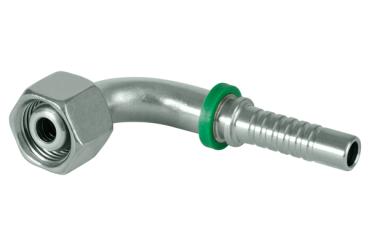

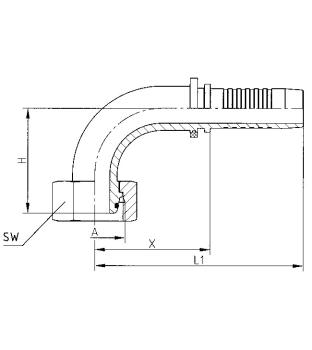

Sealing cone 90° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

A: M24x1,5

R: 16S

X: 48,0 mm

L1: 81,5 mm

SW: 30

DN10 / Size 6 / 3/8"

Sealing cone 45° with O-ring according to DIN 3865 (suitable for cone 24° DIN 3901 and 3902), union nut, heavy series

A: M24x1,5

R: 16S

X: 59,5 mm

L1: 93,0 mm

SW: 30

DN10 / Size 6 / 3/8"

BSP sealing head, 60° cone union with BSP thread

A: G 1/2"

L1: 53,7 mm

DN12 / Size 8 / 1/2"

BSP sealing head 45°, 60° cone union with BSP thread

A: G 5/8"

L1: 96,0 mm

DN16 / Size 10 / 5/8"

BSP sealing head 90°, 60° cone union with BSP thread

A: G 3/4"

L1: 71,5 mm

DN12 / Size 8 / 1/2"

BSP sealing head, union nut with BSP thread, flat sealing

A: G 3/4"

L1: 58,7 mm

DN16 / Size 10 / 5/8"

Flange head SAE J514 (ISO 6162) standard series 3000 PSI

Flange size: 1 1/4"

D: 50,8 mm

X: 46,0 mm

L1: 92,0 mm

DN19 / Size 12 / 3/4"

Flange head SAE J514 (ISO 6162) standard series 3000 PSI, elbow 45°

Flange size: 1 1/2"

D: 60,3 mm

X: 81,5 mm

L1: 136,5 mm

​H: 32,0 mm (+/- 2,5 mm)

DN25 / Size 16 / 1"

Flange head SAE J514 (ISO 6162) standard series 3000 PSI, elbow 90°

Flange size: 1"

D: 44,5 mm

X: 70,5 mm

L1: 125,0 mm

​H: 72,0 mm (+/- 2,5 mm)

DN25 / Size 16 / 1"

Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI

Flange size: 3/4"

D: 41,3 mm

X: 62,0 mm

L1: 117,0 mm

DN25 / Size 16 / 1"

Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 45°

Flange size: 1"

D: 47,6 mm

X: 83,5 mm

L1: 138,5 mm

​H: 36,0 mm (+/- 2,5 mm)

DN25 / Size 16 / 1"

Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 90°

Flange size: 1"

D: 47,6 mm

X: 70,5 mm

L1: 125,5 mm

​H: 73,0 mm (+/- 2,5 mm)

DN25 / Size 16 / 1"
