Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI
Flange size: 1 1/4"
D: 54,0 mm
X: 52,0 mm
L1: 98,0 mm
DN19 / Size 12 / 3/4"
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 45°
Flange size: 3/4"
D: 41,3 mm
X: 74,6 mm
L1: 130,0 mm
H: 30,0 mm (+/- 2,5 mm)
DN25 / Size 16 / 1"
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 90°
X: 64,0 mm
L1: 119,0 mm
H: 62,0 mm (+/- 2,5 mm)
ORFS Sealing form, with union nut, UN / UNF / UNS-Thread
A: 1"-14 UNS
X: 33,1 mm
L1: 71,6 mm
SW: 30
DN16 / Size 10 / 5/8"

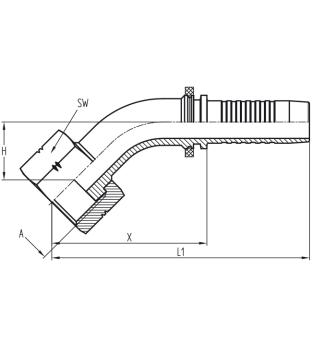

ORFS Sealing form, with union nut, 45° elbow, UN / UNF / UNS-Thread
A: 1 3/16"-12 UN
X: 78,0 mm
L1: 122,3 mm
H: 21,0 mm (+/- 2,5 mm)
SW: 36

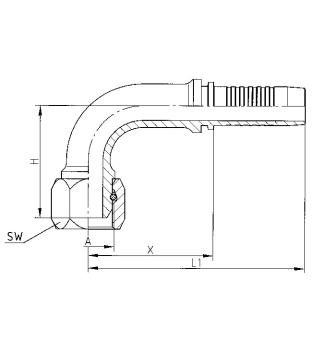

ORFS Sealing form, with union nut, 90° elbow, UN / UNF / UNS-Thread
L1: 96,3 mm
H: 46,0 mm (+/- 2,5 mm)
Swage ferrule, non skive for 1SN, 2SN and 2SC
Material: Free cutting steel
D: 40,0 mm
D1: 49,3 mm
D2: 57,0 mm
L: 60,0 mm
DN32 / Size 20 / 1 1/4"
Banjo coupling, metric
A: 14,1 mm
X: 25,4 mm
L1: 59,5 mm
K: 24,0 mm
DN10 / Size 6 / 3/8"

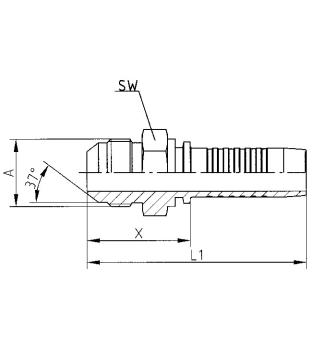

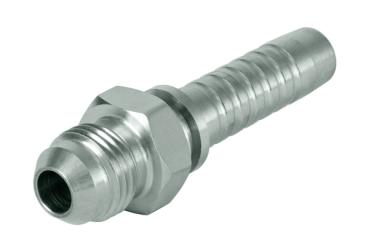

JIC threaded adapter, 74 ° cone with UN / UNF thread
A: 3/4"-16 UNF
L1: 65,1 mm
Threaded adapter with conical NPTF thread
A: 3/8"-18 NPTF
L1: 61,8 mm
DN12 / Size 8 / 1/2"
BSP threaded adapter, 60° cone with BSP male thread
A: G 5/8"
L1: 66,7 mm
Threaded stem with bore form W (24 °) according to DIN 3861, light series
A: M22x1,5
R: 15L
X: 27,5 mm
L1: 61,0 mm
SW: 22
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
A: M24x1,5
R: 16S
X: 30,1 mm
L1: 65,6 mm
SW: 24
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
A: 7/8"-14 UNF
L1: 56,8 mm
JIC threaded adapter, 74 ° cone with union nut, 45° elbow, UN / UNF thread
X: 62,0 mm
L1: 94,5 mm
H: 19,0 mm (+/- 2,5 mm)
X: 37,7 mm
L1: 71,0 mm
H: 35,5 mm (+/- 2,5 mm)
SW: 27
{{.}}
{{{.}}}
