Flange head SAE J514 (ISO 6162) standard series 3000 PSI, elbow 90°
Flange size: 1 1/4"
D: 50,8 mm
X: 63,0 mm
L1: 109,0 mm
H: 62,0 mm (+/- 2,5 mm)
DN19 / Size 12 / 3/4"
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI
Flange size: 1"
D: 47,6 mm
X: 50,6 mm
L1: 96,6 mm
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 45°
X: 64,2 mm
L1: 114,0 mm
H: 30,0 mm (+/- 2,5 mm)
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 90°
X: 61,5 mm
L1: 107,5 mm
H: 68,0 mm (+/- 2,5 mm)
ORFS Sealing form, with union nut, UN / UNF / UNS-Thread
A: 1 3/16"-12 UN
X: 32,1 mm
L1: 64,6 mm
SW: 36
DN12 / Size 8 / 1/2"

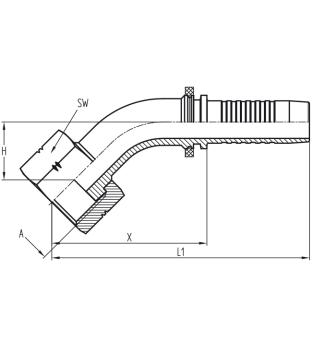

ORFS Sealing form, with union nut, 45° elbow, UN / UNF / UNS-Thread
A: 1"-14 UNS
X: 52,5 mm
L1: 91,0 mm
H: 23,3 mm (+/- 2,5 mm)
SW: 30
DN16 / Size 10 / 5/8"

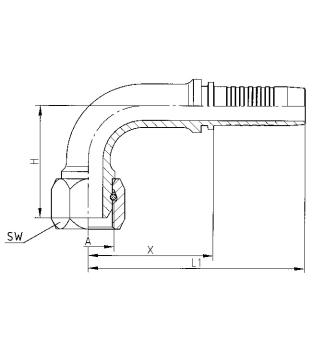

ORFS Sealing form, with union nut, 90° elbow, UN / UNF / UNS-Thread
X: 45,0 mm
L1: 83,5 mm
H: 48,8 mm (+/- 2,5 mm)
Swage ferrule, non skive for 1SN, 2SN and 2SC
Material: Free cutting steel
D: 32,3 mm
D1: 38,8 mm
D2: 47,0 mm
L: 52,0 mm
DN25 / Size 16 / 1"

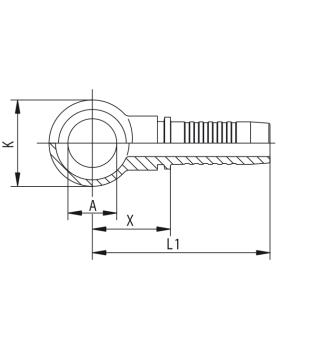

Banjo coupling, metric
A: 16,1 mm
X: 26,8 mm
L1: 53,3 mm
K: 28,0 mm
DN8 / Size 5 / 5/16"

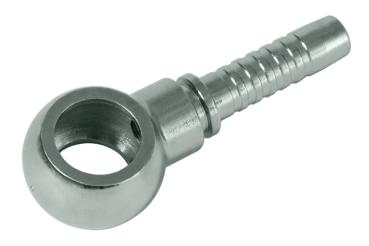

Banjo coupling, imperial
A: 33,5 mm
X: 47,0 mm
L1: 101,3 mm
K: 58,0 mm
JIC threaded adapter, 74 ° cone with UN / UNF thread
A: 9/16"-18 UNF
L1: 61,4 mm
DN10 / Size 6 / 3/8"
Threaded adapter with conical NPTF thread
A: 1/2"-14 NPTF
L1: 67,9 mm
BSP threaded adapter, 60° cone with BSP male thread
A: G 1/2"
L1: 63,4 mm
ORFS-Dichtform, Außengewinde mit stirnseitigem O-Ring, UN-/UNF-/UNS-Gewinde
A: 1 11/16"-12 UN
X: 45,3 mm
L1: 103,2 mm
SW: 46
DN31 / Size 20 / 1 1/4"
Threaded stem with bore form W (24 °) according to DIN 3861, light series
A: M18x1,5
R: 12L
X: 25,5 mm
L1: 59,0 mm
SW: 19
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
A: M22x1,5
R: 14S
X: 30,1 mm
L1: 65,6 mm
SW: 22
{{.}}
{{{.}}}
