Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI
Flange size: 1/2"
D: 31,8 mm
X: 57,0 mm
L1: 103,0 mm
DN19 / Size 12 / 3/4"
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 45°
X: 65,0 mm
L1: 111,0 mm
H: 25,0 mm (+/- 2,5 mm)
Flange head SAE J514 (ISO 6162) high pressure series 6000 PSI, elbow 90°
X: 56,0 mm
L1: 102,0 mm
H: 51,0 mm (+/- 2,5 mm)
ORFS Sealing form, with union nut, UN / UNF / UNS-Thread
A: 13/16"-16 UN
X: 25,6 mm
L1: 58,1 mm
SW: 24
DN12 / Size 8 / 1/2"
ORFS Sealing form, with union nut, 45° elbow, UN / UNF / UNS-Thread
X: 61,0 mm
L1: 93,5 mm
H: 17,0 mm (+/- 2,5 mm)

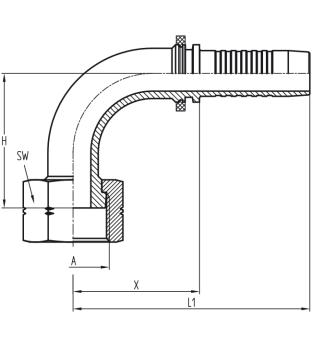

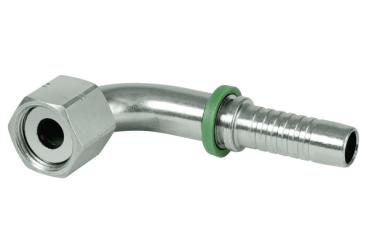

ORFS Sealing form, with union nut, 90° elbow, UN / UNF / UNS-Thread
X: 40,0 mm
L1: 72,5 mm
H: 36,0 mm (+/- 2,5 mm)
Swage ferrule, non skive for 1SN, 2SN and 2SC
Material: Free cutting steel
D: 22,5 mm
D1: 26,2 mm
D2: 34,0 mm
L: 38,0 mm
DN16 / Size 10 / 5/8"

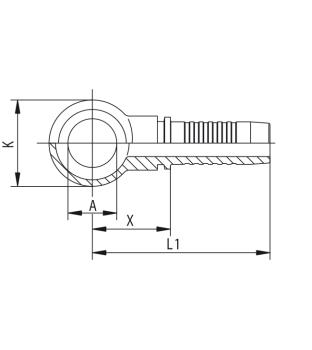

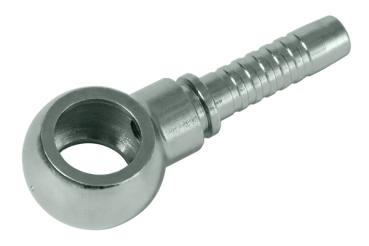

Banjo coupling, metric
A: 12,1 mm
X: 28,1 mm
L1: 54,6 mm
K: 20,0 mm
DN8 / Size 5 / 5/16"
Banjo coupling, imperial
A: 23,1 mm
X: 37,0 mm
L1: 77,0 mm
K: 38,0 mm

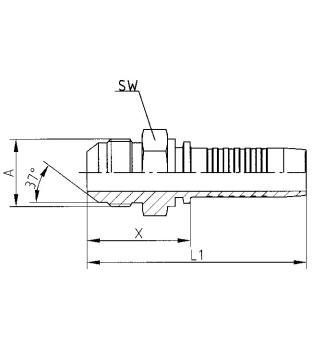

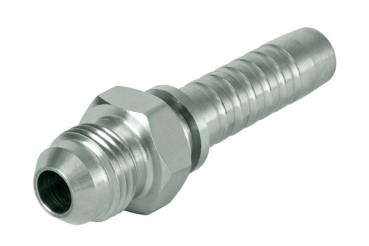

JIC threaded adapter, 74 ° cone with UN / UNF thread
A: 3/4"-16 UNF
L1: 61,8 mm
Threaded adapter with conical NPTF thread
A: 1/4"-18 NPTF
L1: 62,5 mm
DN10 / Size 6 / 3/8"
BSP threaded adapter, 60° cone with BSP male thread
A: G 1/2"
L1: 67,2 mm
ORFS-Dichtform, Außengewinde mit stirnseitigem O-Ring, UN-/UNF-/UNS-Gewinde
A: 1 3/16"-12 UN
X: 39,2 mm
L1: 83,5 mm
SW: 32
O-Ring 18,77x1,78 mm
Threaded stem with bore form W (24 °) according to DIN 3861, light series
A: M22x1,5
R: 15L
L1: 58,3 mm
SW: 22
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
A: M20x1,5
R: 12S
X: 27,5 mm
L1: 61,0 mm
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
A: 1/2"-20 UNF
L1: 50,3 mm
{{.}}
{{{.}}}
