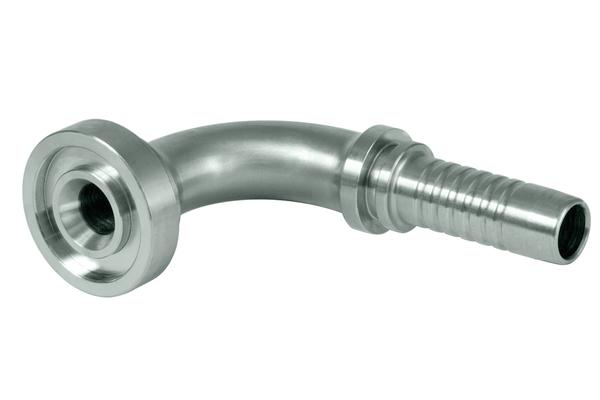

SFL 90° - DN25 - 3/4"

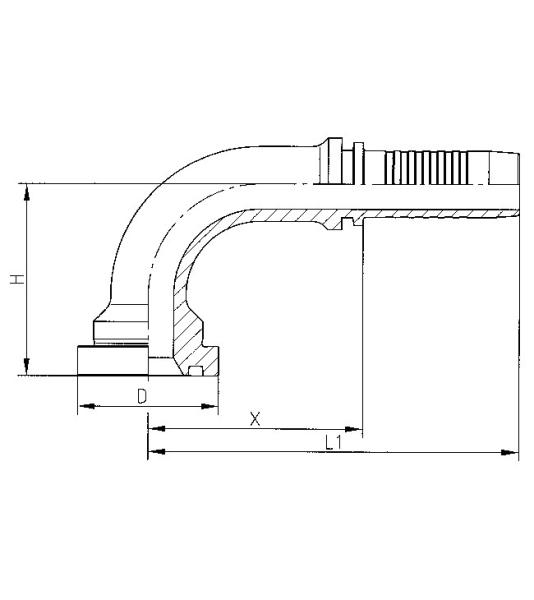

• Flange head SAE J514 (ISO 6162) standard series 3000 PSI, elbow 90°

• Flange size: 3/4"

• D: 38,1 mm

• X: 64,0 mm

• L1: 119,0 mm

• ​H: 59,0 mm (+/- 2,5 mm)

• DN25 / Size 16 / 1"

Hydraulic component for integration in hydraulic systems

All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
