Hydraulic Motor CPMH315CB
Motor (Hydraulic) CPMH315CB
This motor is characterised by its high quality and its reasonable price.This product’s features are as follows:
- hydraulic motor CPMH315CB
- displacement: 315 ccm/REV
- ports: G 1/2’’
- shaft: Ø 35 mm cylindrical with key A10 x 8 x 45
- 4-hole oval flange (magneto flange)
- spool valve type
- internal check valve
- incl. high pressure seal up to 150 bar
- usage without drain line possible
- OEM quality
- optimized for small spaces
Technical data:
| Type | CPMH160 | CPMH200 | CPMH250 | CPMH315 | CPMH400 | CPMH500 |
| Displacement [ccm/REV] | 159 | 203.2 | 255.9 | 316.1 | 406.4 | 489.2 |
| max. Speed [RPM] | 450 | 366 | 290 | 236 | 183 | 155 |
| max. Torque [daNm] | 35.5 | 51 | 62.1 | 74 | 85 | 83 |
| max. Power [kW] | 16 | 16 | 16 | 14 | 12.5 | 11 |
| max. Pressure drop [bar] | 175 | 175 | 175 | 175 | 155 | 125 |
| max. Oil flow [l/min] | 75 | 75 | 75 | 75 | 75 | 75 |
| max. Input pressure [bar] | 200 | 200 | 200 | 200 | 200 | 200 |

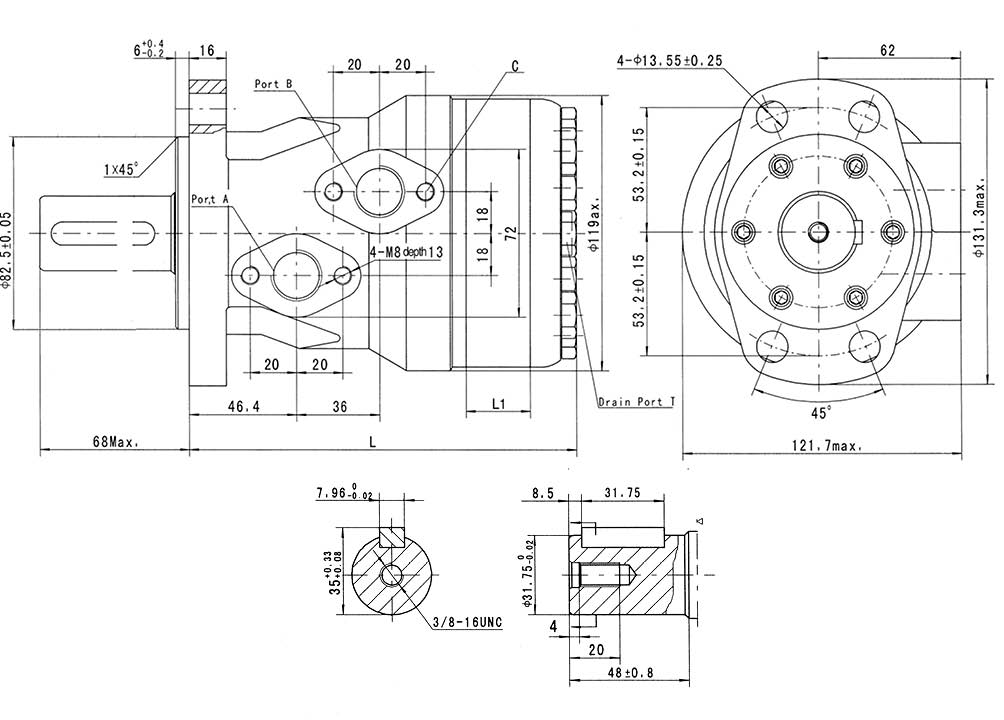

CPMH available flange and shaft versions:
| Code | Montageflansch | Code | Shaft versions | |
| Omit | Magneto flange 4-hole, SAE A | C | Ø32 mm cylindrical with key A10 x8 x 45 | |
| |
