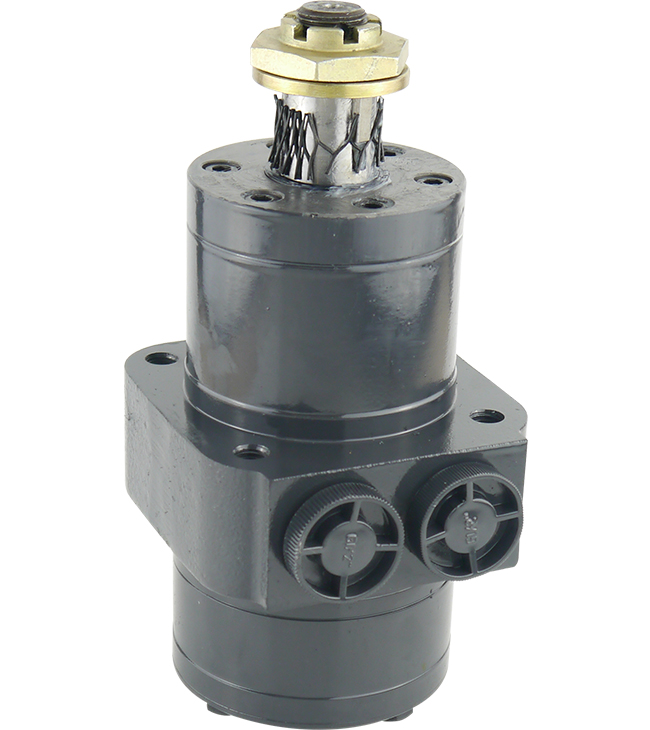

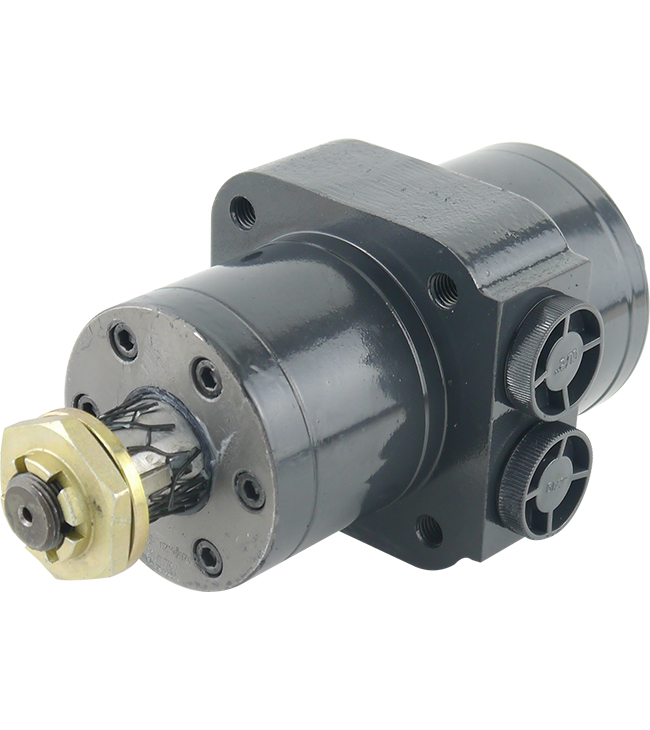

Hydraulic motor CPMW160KD
Motor (Hydraulic) CPMW160KD
This motor is characterised by its high quality and its reasonable price.This product’s features are as follows:
- hydraulic motor CPMW160KD
- displacement: 160 ccm/REV
- ports: G 1/2’’
- shaft: conical 1:10 with key B5 x 5 x 14
- wheel flange
- spool valve type
- internal check valve
- incl. high pressure seal up to 150 bar
- usage without drain line possible
- OEM quality
- optimized for small spaces
Technical data:
Type | CPM36 | CPM50 | CPM80 | CPM100 | CPM125 | CPM160 | CPM200 | CPM250 | CPM315 | CPM400 |
Displacement [ccm/REV] | 36 | 51.7 | 77.7 | 96.2 | 117.2 | 155.5 | 189.9 | 231 | 311.7 | 386.2 |
max. Speed [U/min] | 1500 | 1180 | 760 | 600 | 485 | 380 | 302 | 240 | 190 | 150 |
max. Torque[daNm] | 5.5 | 9.3 | 14.9 | 19 | 23.4 | 31 | 35.9 | 35.1 | 34.2 | 34.8 |
max. Power[kW] | 8 | 10.2 | 10.1 | 10.3 | 10 | 10 | 9.6 | 7.4 | 5.6 | 4.6 |
max. Pressure drop [bar] | 125 | 140 | 140 | 140 | 140 | 140 | 135 | 105 | 80 | 65 |
