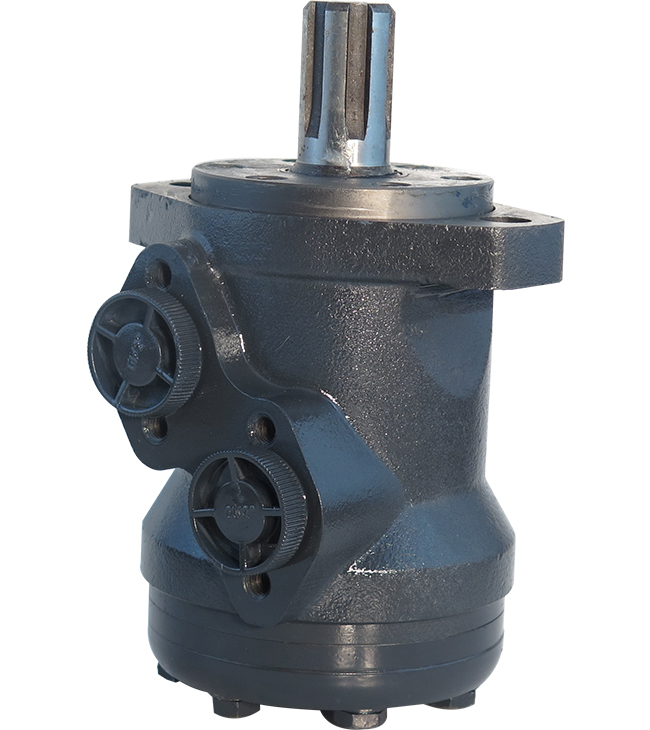

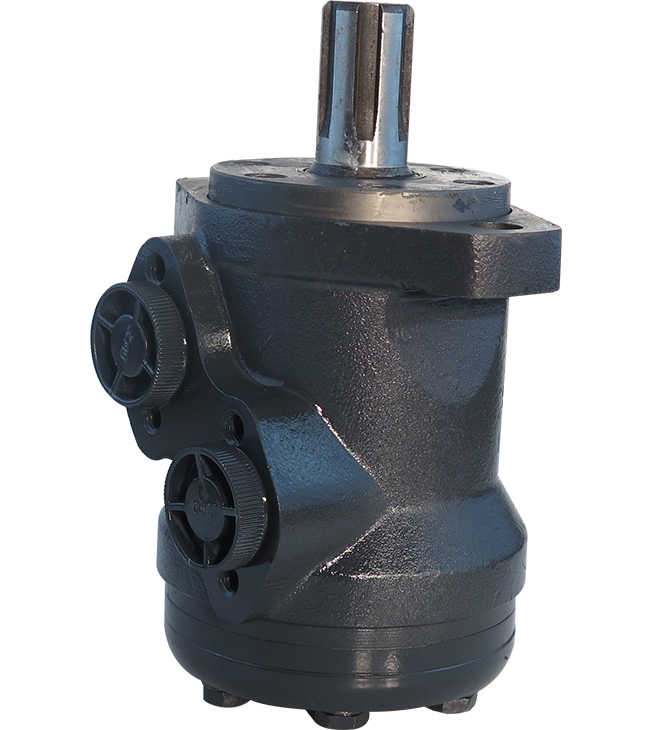

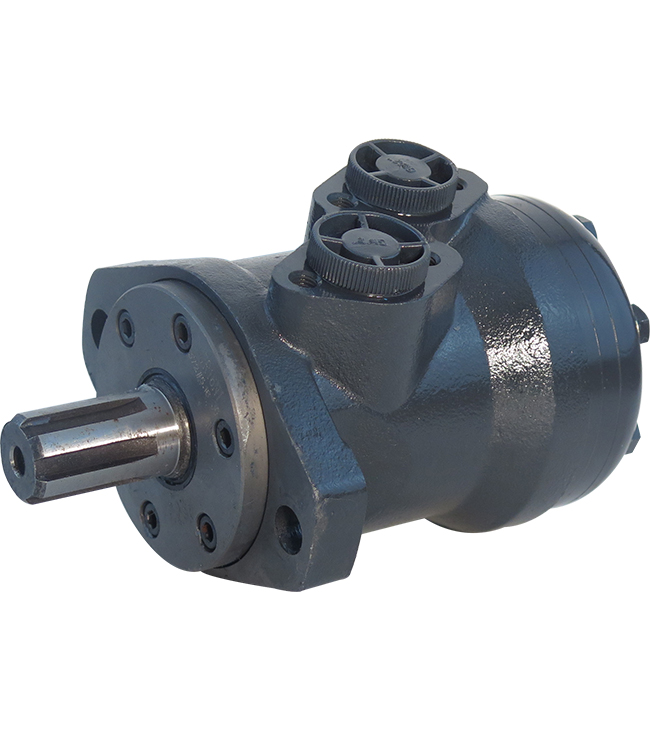

Hydraulic Motor CPRM200SHD
Motor (Hydraulic) CPRM200SHD
This motor is characterised by its high quality and its reasonable price.This product’s features are as follows:
- hydraulic motor CPRM200SHD
- displacement: 200 ccm/REV
- ports: G 1/2’’
- shaft: Ø 25.32 mm splined (SAE 6B)
- 2-hole SAE A flange
- spool valve type
- internal check valve
- incl. high pressure seal up to 150 bar
- usage without drain line possible
- OEM quality
- optimized for small spaces
Technical data:
| Type | CPRM36 | CPRM50 | CPRM80 | CPRM100 | CPRM125 | CPRM160 | CPRM200 | CPRM250 | CPRM315 | CPRM400 |
| Displacement [ccm/U] | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 |
| max. Speed [Rev/min] | 1250 | 960 | 760 | 600 | 485 | 378 | 310 | 240 | 190 | 155 |
| max. Torque [daNm] | 7.2 | 10 | 19.5 | 24 | 30 | 38 | 45 | 54 | 55 | 58 |
| max. Power [kW] | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 11 | 10 | 9 | 7.5 |
| max. Pressure drop [bar] | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 135 | 115 |
