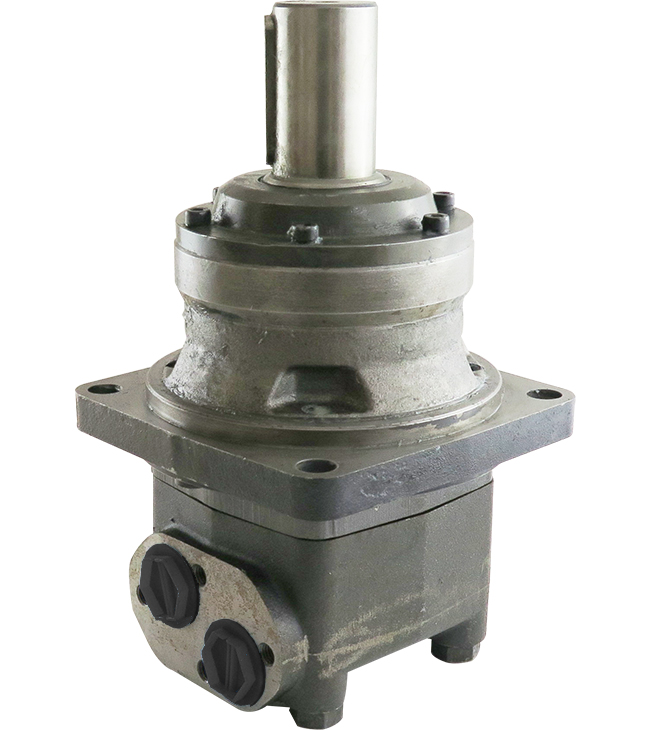

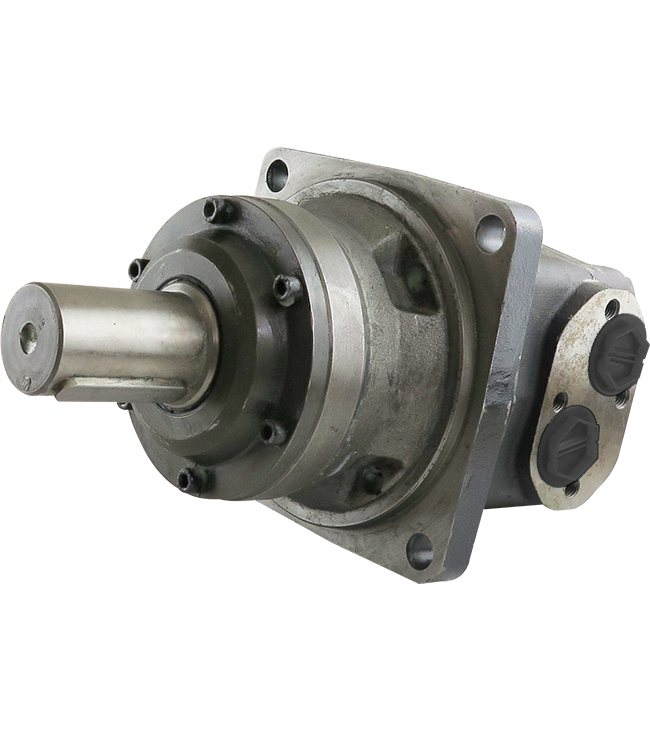

Hydraulic Motor CPMTW200C

Motor (Hydraulic) CPMTW200C

This motor is characterised by its high quality and its reasonable price.

This product’s features are as follows:

• hydraulic motor CPMTW200C
• displacement: 200 ccm/REV
• ports: G 3/4’’
• shaft: Ø 40 mm cylindrical with key A12 x 8 x 70
• wheel flange
• disc valve type
• internal check valve
• usage without drain line possible
• OEM quality
• optimized for small spaces

Technical data:


Type	CPMT160	CPMT200	CPMT250	CPMT315	CPMT400	CPMT500	CPMT630	CPMT800
Displacement [ccm/REV]	161.1	201.4	251.8	326.3	410.9	523.6	629.1	801.8
max. Speed [RPM]	625	625	500	380	305	240	196	154
max. Torque [daNm]	47	59	73	95	108	122	131.8	146.4
max. Power [kW]	27.7	34.9	34.5	34.9	31.2	28.8	25.3	22.2
max. Pressure drop [bar]	200	200	200	200	180	160	140	125
max. Oil flow [l/min]	100	125	125	125	125	125	125	125
max. Input pressure [bar]	210	210	210	210	210
