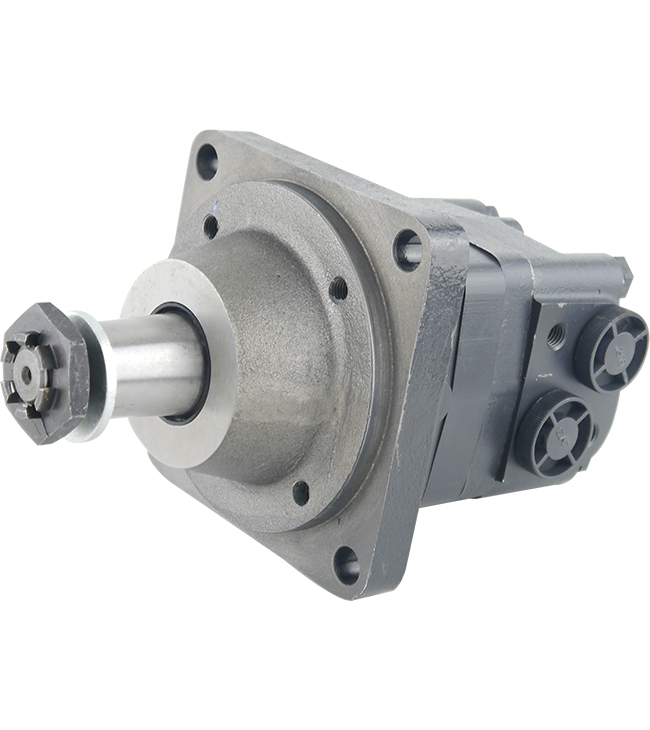

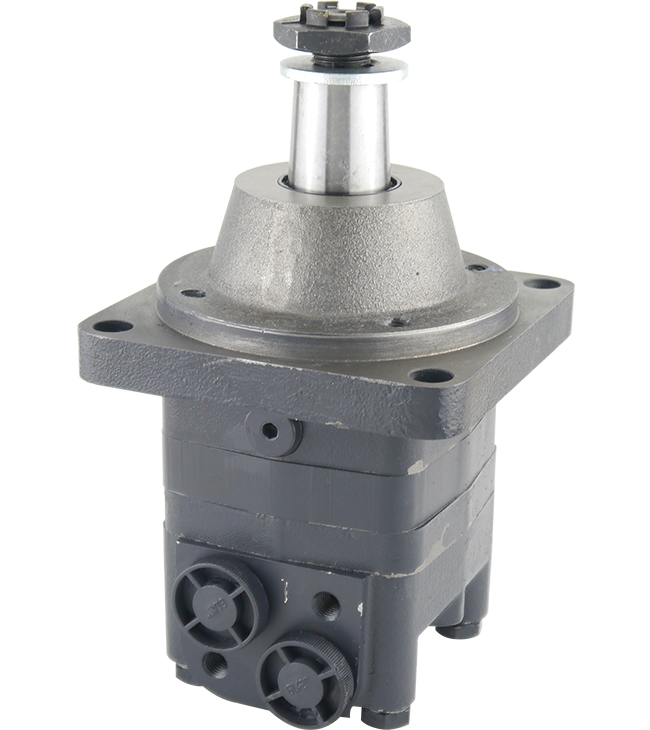

Hydraulic Motor CPMSW400K

Motor (Hydraulic) CPMSW400K

This motor is characterised by its high quality and its reasonable price.

This product’s features are as follows:

• hydraulic motor CPMSW400K
• displacement: 400 ccm/REV
• ports: G 1/2’’
• shaft: conical 1:10 with key B5 x 5 x 14
• wheel flange
• disc valve type
• internal check valve
• incl. high pressure seal up to 150 bar
• usage without drain line possible
• OEM quality
• optimized for small spaces

Our CPMSW400K motors are interchangeable to the following manufacturers:

• Danfoss, 151F0310, OMSW 400
• Danfoss, 151F0610, OMSW 400 W32mm

Technical data:


Type	CPMS80	CPMS100	CPMS125	CPMS160	CPMS200	CPMS250	CPMS315	CPMS400	CPMS475
Displacement [ccm/REV]	80.6	100.8	125	154	194	243	311	394	475
max. Speed [RPM]	800	748	600	470	375	300	240	185	155
max. Torque [daNm]	22.5	29	36.5	48.5	58.6	70.8	88	88	91
max. Power [kW]	16	18	18	18.1	18.1	18	17	11	9
max. Pressure drop [bar]	205	205	205	210	210	200	200	160	140
max. Oil flow [l/min]	65	75	75	75	75
