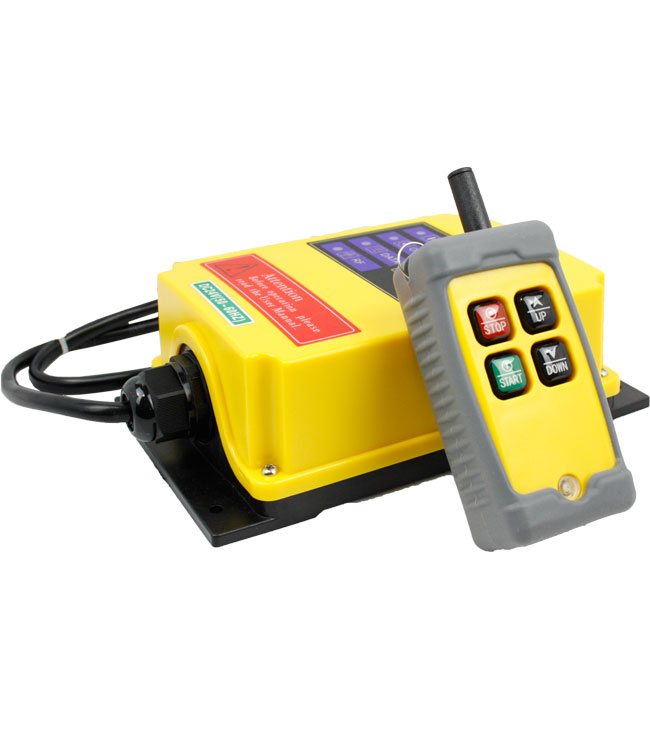

Hydromot Remote Control Unit (2 functions) for power packs

Hydromot Remote Control Unit (2 functions) for power packs, 24V

This steering wheel is characterised by it high quality and reasonable price.

Range of applications:
Winches and cable winches, hydraulic cranes, industrial automation, trailers for special transports, vehicles and equipment for agriculture, hydraulic control units, lifting platforms

Its features are as follows:

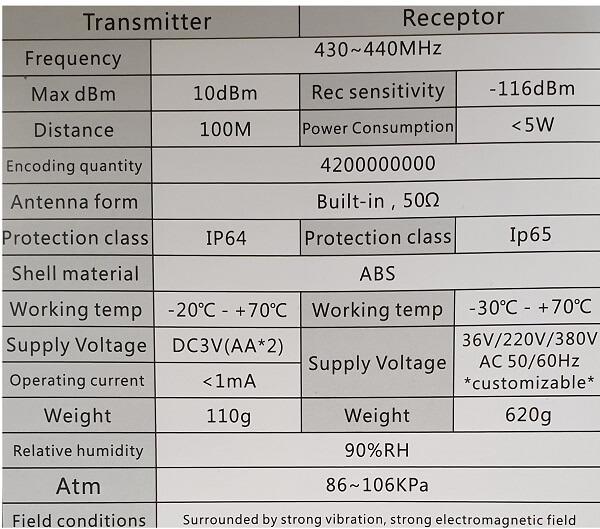

Technical data receiver:

• Number of outputs: 2
• Frequency: 430-440 MHz
• Dimensions (mm): 204x121x65 including antenna
• Protection class: IP65
• Nominal supply 24VDC (10 - 36 VDC permitted)
• Body material: ABS
• Operating temperature: -30°C - +70°C

Technical data handheld:

• Number of controls: 2
• Frequency: 430-440 MHz
• Battery supply by 2 batteries type AA 1, 5V
• Average current consumption in operation: <1 mA
• Protection class IP64
• Total weight including batteries: 110 g
• Operating temperature: from -20°C to +70°C
• Body material: ABS

Hydraulic component for integration in hydraulic systems
