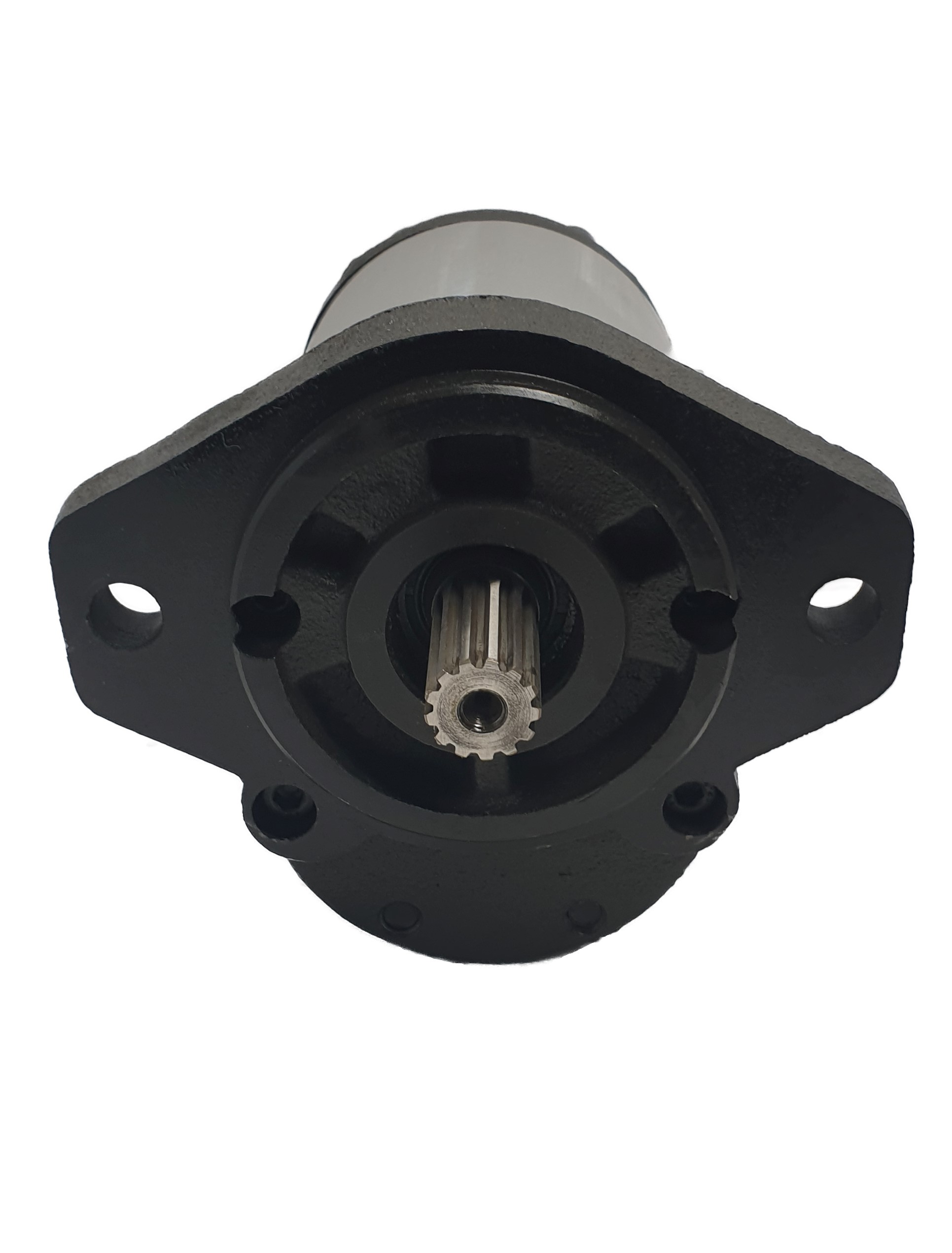

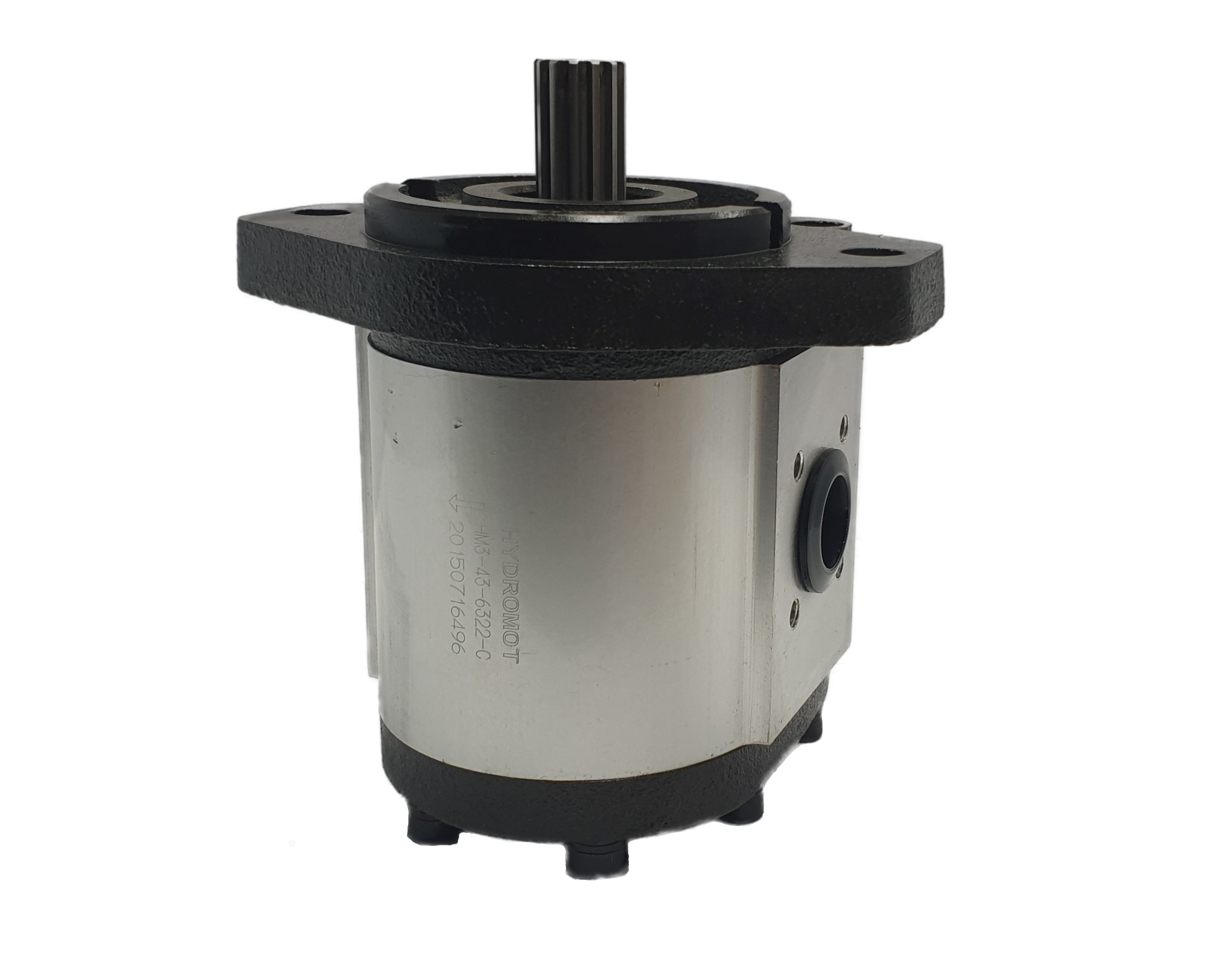

Hydraulic Gear Pump, Group 3, SAE B flange, splined shaft 13 T 16/32 Dp, Flange connection, Selectable Displacement 22 to 42 ccm/REV, rotation right

Hydraulic Gear Pump, Group 3, SAE B flange, splined shaft 13 T 16/32 Dp,  Flange connection, Selectable Displacement 22 to 42 ccm/REV, rotation right

This pump is characterised by its high quality and reasonable price.

Its features are as follows:

• group 3
• Selectable Displacement 22 to 42 ccm/REV
• SAE B Flange
• centering Ø 101,6
• shaft: splined shaft 13 T 16/32 Dp
• Side ports: flange connection type 2
• rotation direction: right

Elbow flanges:

Size	Inlet ports	Outlet ports
20ccm - 55ccm	LK55-1-BO	LK55-34-BO

Technical data:

Displacement	Dimensions								Technical  data
	A	B	Inlet ports			Outlet ports			Rated pressure	Speed
cm3	mm	mm	E (mm)	F (mm)	d (mm)	E (mm)	F (mm)	d (mm)	bar	tr/min
20	60.54	119.08	Ø55	Ø26	M8	Ø55	Ø18	M8	250	700...2500
22.5	62.04	122.08	Ø55	Ø26	M8	Ø55	Ø18	M8	250	700...2500
25	62.74	123.48	Ø55	Ø26	M8	Ø55	Ø18	M8	250	700...2500
28	64.55	127.1	Ø55	Ø26	M8	Ø55	Ø18	M8	250	700...2500
32	66.35	130.7	Ø55	Ø26	M8	Ø55	Ø18	M8	250	700...2500
36	67.9	133.8	Ø55	Ø26	M8	Ø55	Ø18	M8	250	700...2300
42	70.75	139.5	Ø55	Ø26	M8	Ø55	Ø18	M8	230	700...2300
46	72.6	143.2	Ø55	Ø26	M8	Ø55	Ø18	M8	230	700...2100
50	74.4	146.8	Ø55	Ø26	M8	Ø55	Ø18	M8	200	700...2100
55	76.65	151.3	Ø55	Ø26	M8	Ø55	Ø18	M8	200	700...1750
63	80.4	158.8	Ø62	Ø33	M12	Ø55	Ø33	M12	160	700...1750

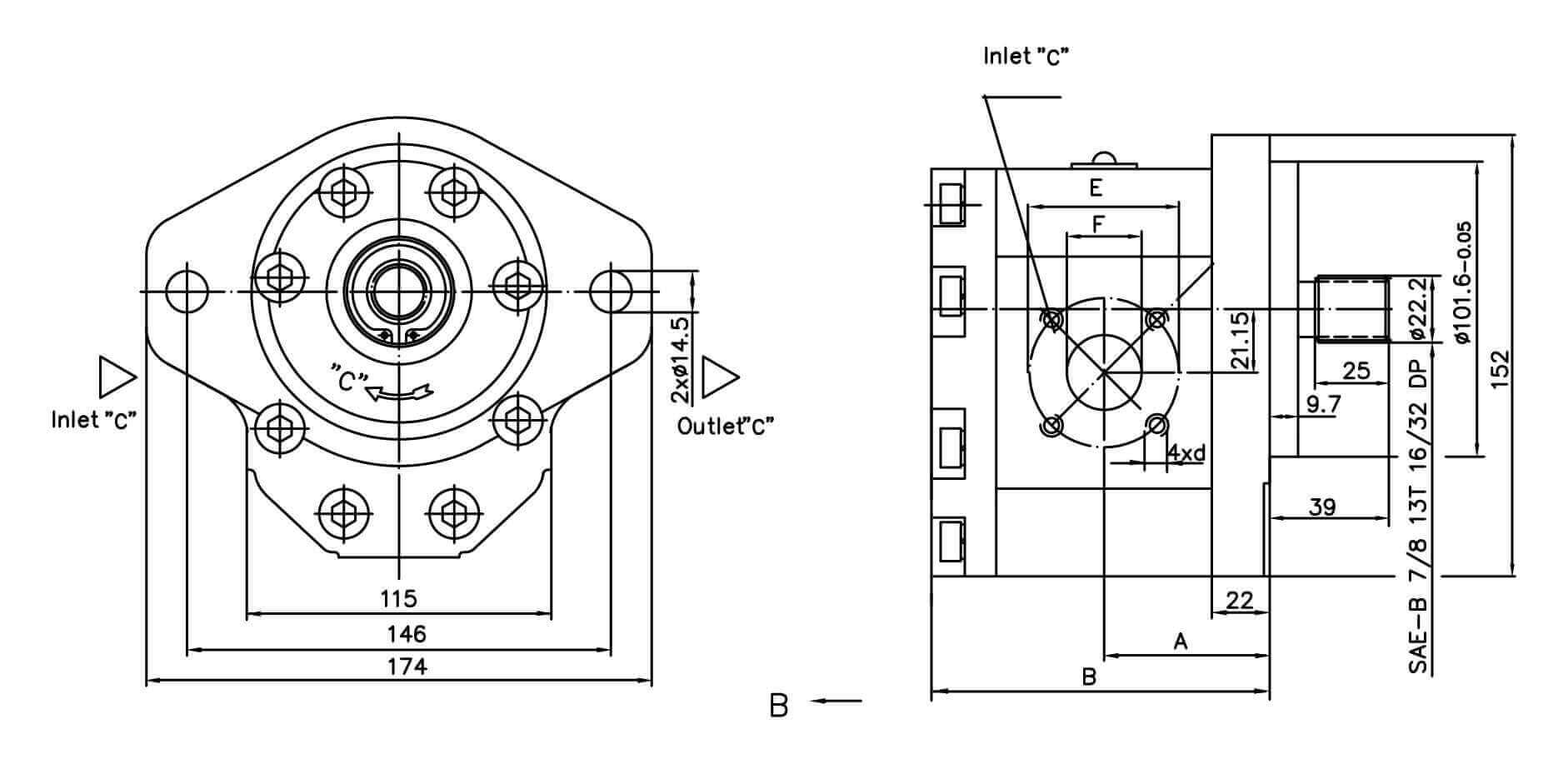

Pump Dimensions:

Download catalogue:

Hydraulic component for integration in hydraulic systems

All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
