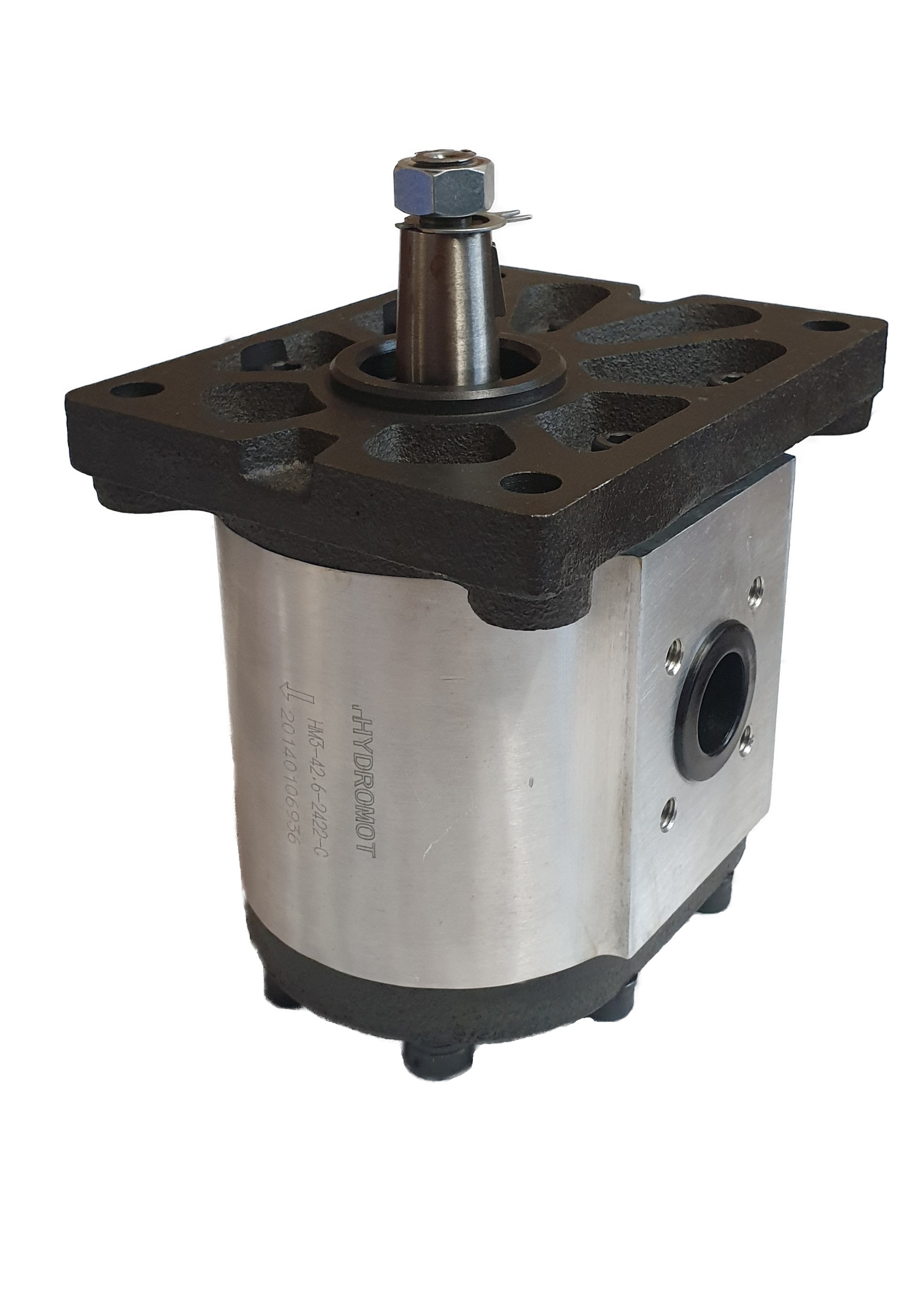

Hydraulic Gear Pump, Group 3, European flange, Conical Shaft 1:8, Flange connection, Sip volume 42 cm³/U, rotation right

Hydraulic Gear Pump, Group 3, European flange, Conical Shaft 1:8,  Flange connection, Sip volume 42 cm³/U, rotation right

This pump is characterised by its high quality and reasonable price.

Its features are as follows:

• group 3
• Sip volume 42 cm³/U
• European rectangular flange 4 x Ø 11 mm)
• centering Ø 50,8mm
• shaft: conical 1:8
• Side ports: flange connection type 2
• rotation direction: right

Elbow flanges:

Size	Inlet ports	Outlet ports
20ccm - 55ccm	LK55-1-BO	LK55-34-BO

Technical data:


Displacement	Dimensions								Technical data
	A	B	Inlet ports			Outlet ports			Rated pressure	Speed
cm3	mm	mm	E (mm)	F (mm)	d (mm)	E (mm)	F (mm)	d (mm)	bar	tr/min
20	61.1	123.7	Ø55	Ø26	M8	Ø55	Ø18	M8	250	700...2500
25	63.3	128.1	Ø55	Ø26	M8	Ø55	Ø18	M8	250	700...2500
28	65.2	131.7	Ø55	Ø26	M8	Ø55	Ø18	M8	250	700...2500
32	67	135.3	Ø55	Ø26	M8	Ø55	Ø18	M8	250	700...2500
36	68.5	138.4	Ø55	Ø26	M8	Ø55	Ø18	M8	250	700...2300
42	71.4	144.1	Ø55	Ø26	M8	Ø55	Ø18	M8	230	700...2300
46	73.2	147.8	Ø55	Ø26	M8	Ø55	Ø18	M8	230	700...2100
50	75	151.4	Ø55	Ø26	M8	Ø55	Ø18	M8	200	700...2100
55	77.2	155.9	Ø55	Ø26	M8	Ø55	Ø18	M8	200	700...1750
63	83.5	159.9	Ø62	Ø33	M12	Ø62	Ø33	M12	160	700...1750

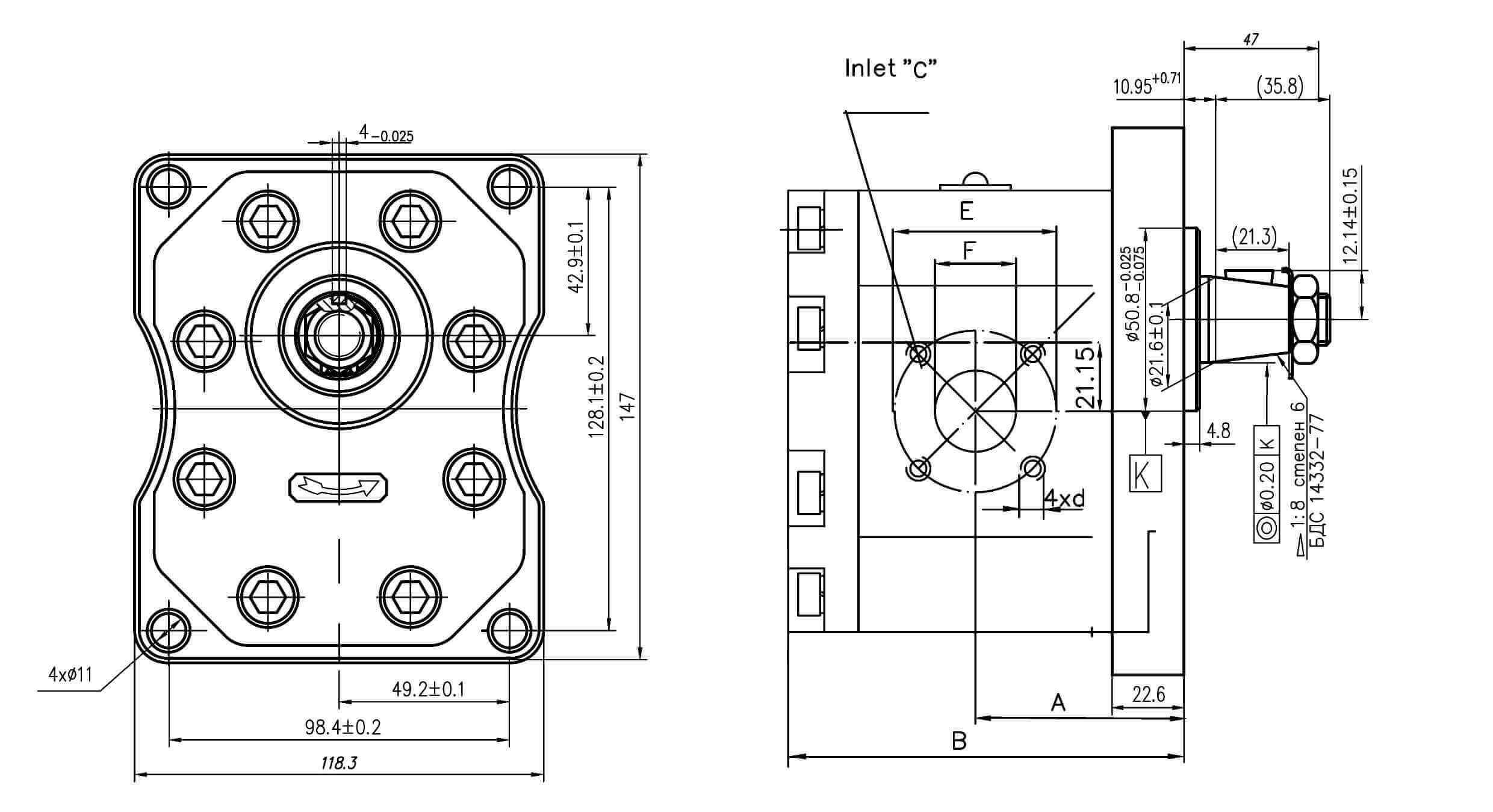

Pump dimensions:(Left rotation)




Download catalogue:

Hydraulic component for integration in hydraulic systems
