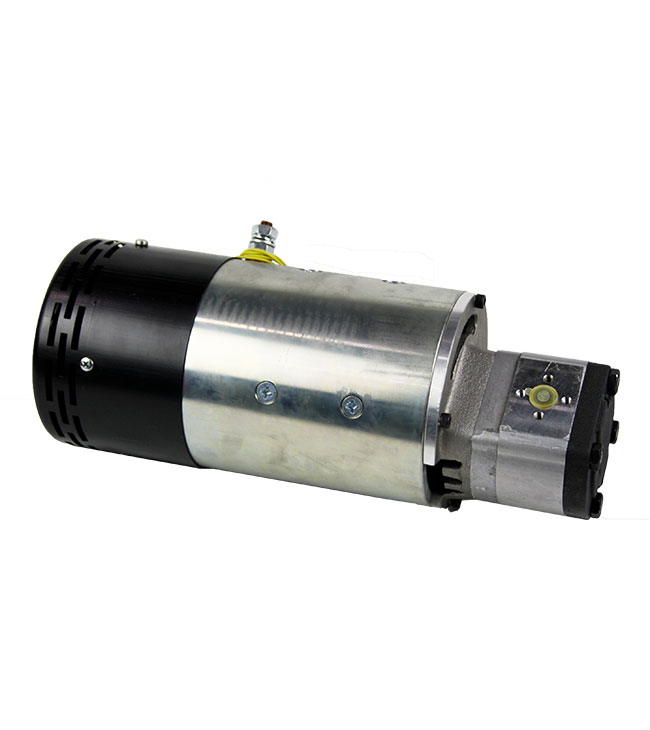

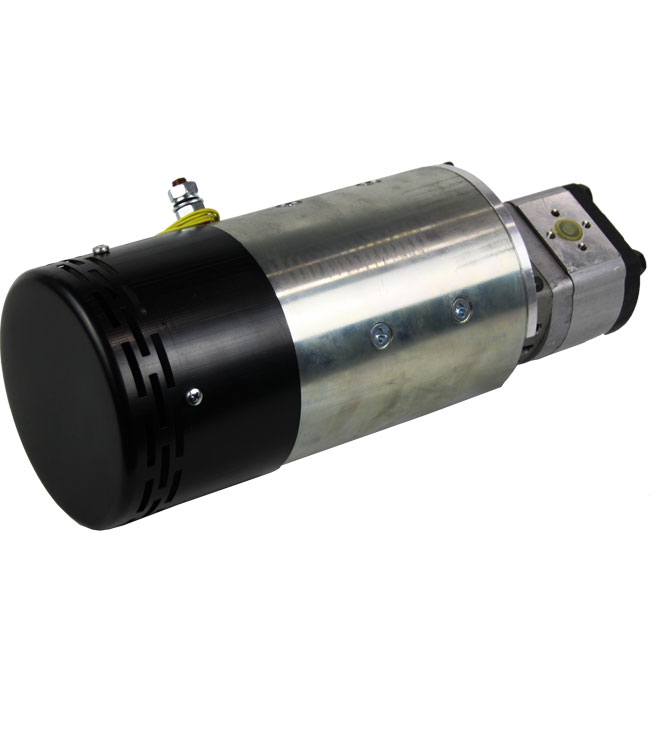

DC Motor-Pump Unit, 4.5kW, 24 VDC, 2000 RPM, 6 ccm/REV gear pump, 12 l/min

DC Motor-Pump Unit, 4.5kW, 24 VDC, 2000 RPM, 6 ccm/REV gear pump, 12 l/min

This DC motor pump unit is characterised by its high quality and its reasonable price.

The DC motor pump unit has the following features::

• Electrical motor 4.5 kW, 24 VDC, with fan
• Motor speed 2000 RPM
• Rated current: 294 A
• Gear pump 6 ccm/REV (equal about 12 l/min)
• max. working prsssure: 180 bar
• pump side ports europ. version, hole dia 30 mm

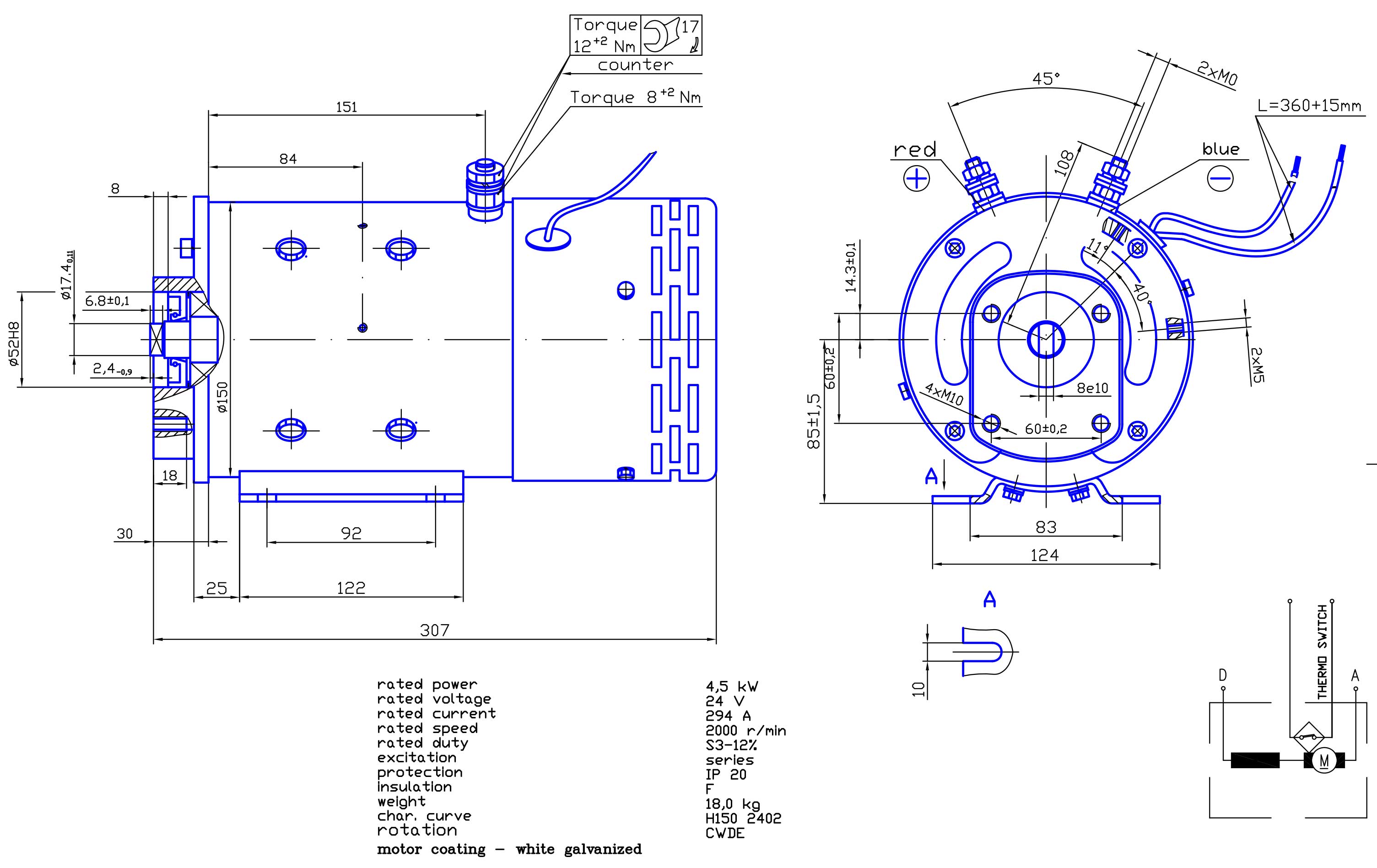

Dimension:




Hydraulic component for integration in hydraulic systems
