Description

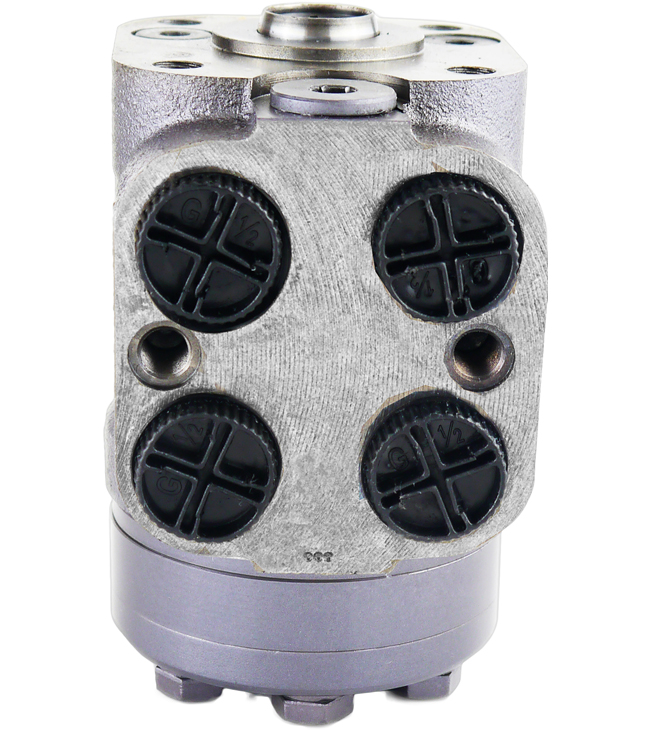

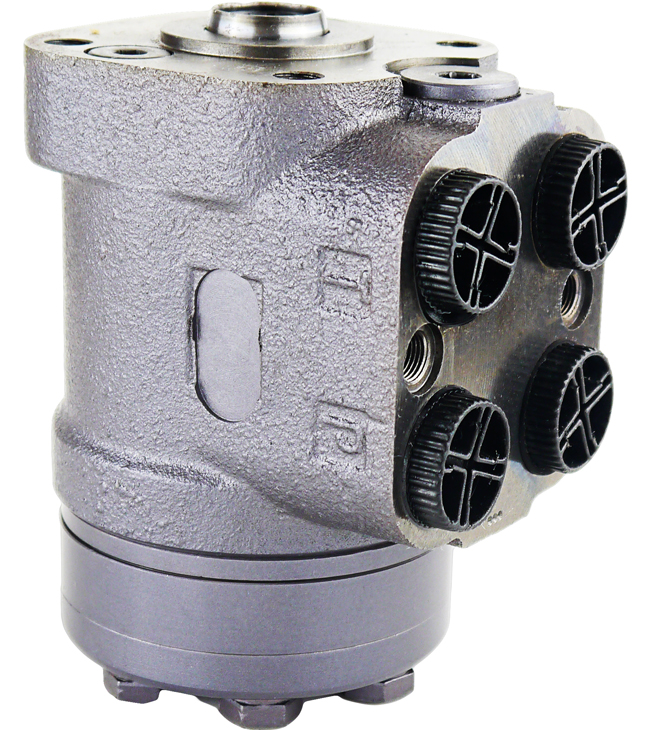

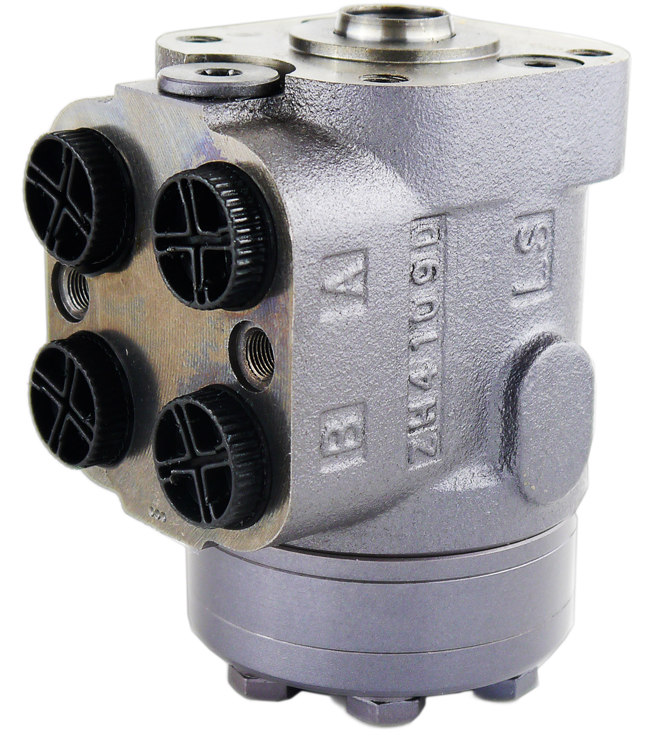

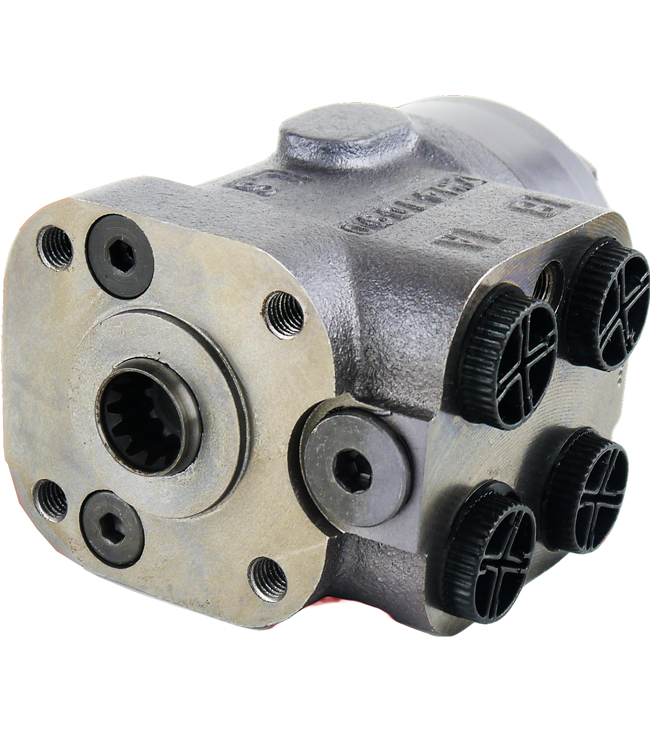

Steering unit, hydraulic, type CSUS_/4-160, Open Center - Non Load Reaction

"Open Center" means that this unit is provided for open systems. There's an open connection between "P" and "T" in neutral position. "Non Load Reaction" means that you don't feel external forces on the steering wheel when the steering unit is in neutral position. Please pay attention to the country specific laws for mechanical hydraulic steering systems on public roads. For example in Europe, the German TÜV regulations § 38StVZO and ISO 5010.

Steering unit features are as follows:

type CSUS_/4
open Center - Non Load Reaction
ports: G 1/2'’
selectable displacement from 50 ccm/REV up to 400 ccm/REV
integrated pressure relief valves PRV, setted to 160bar, other setting on request.
Interchangeable to Danfoss OSPC_ON
type D

Hydraulic scheme:

Scheme HYDRAULIC STEERING UNIT CSUS_/4-160 BAR

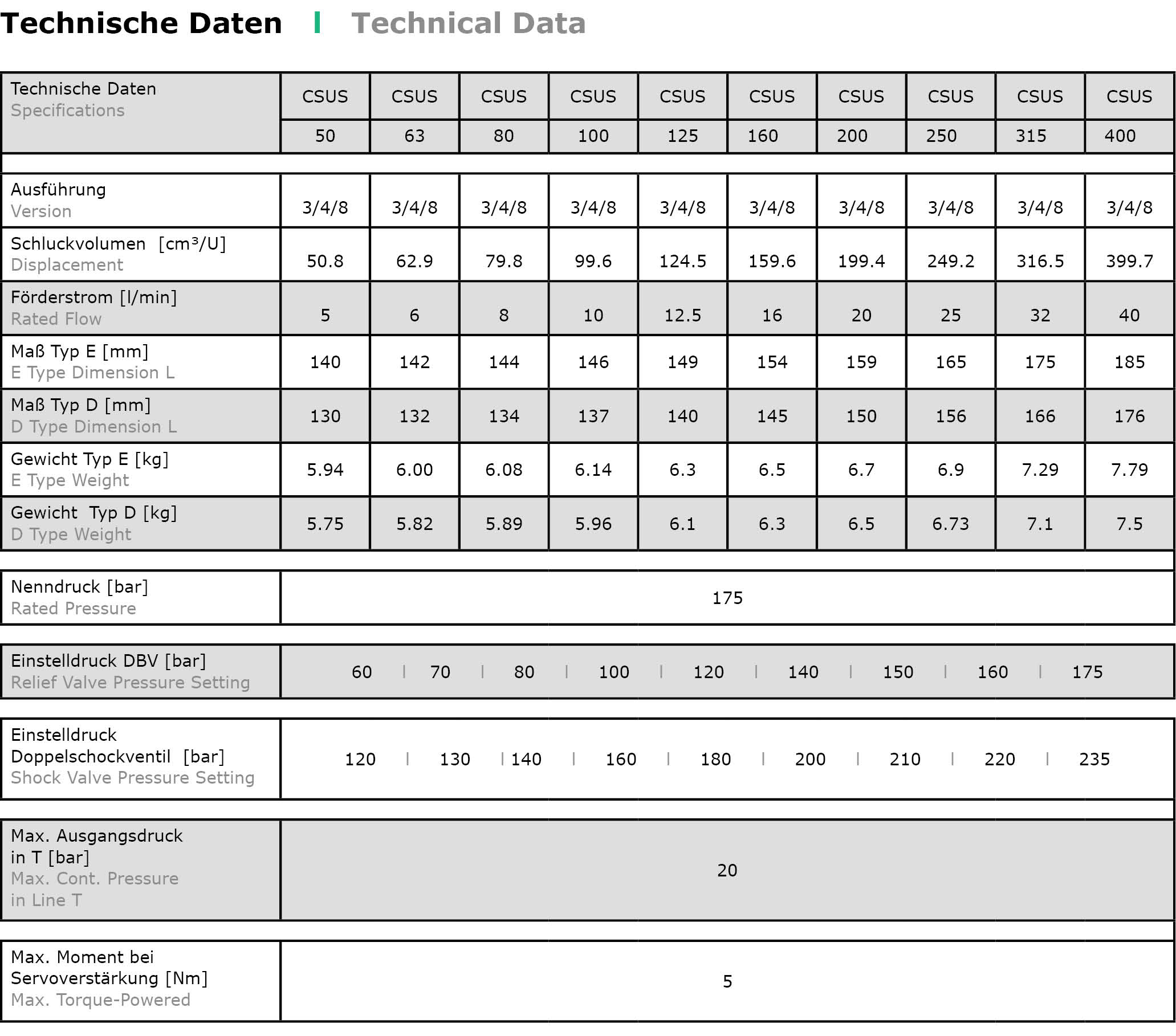

Technical Data HYDRAULIC STEERING UNIT CSUS_/4-160 BAR

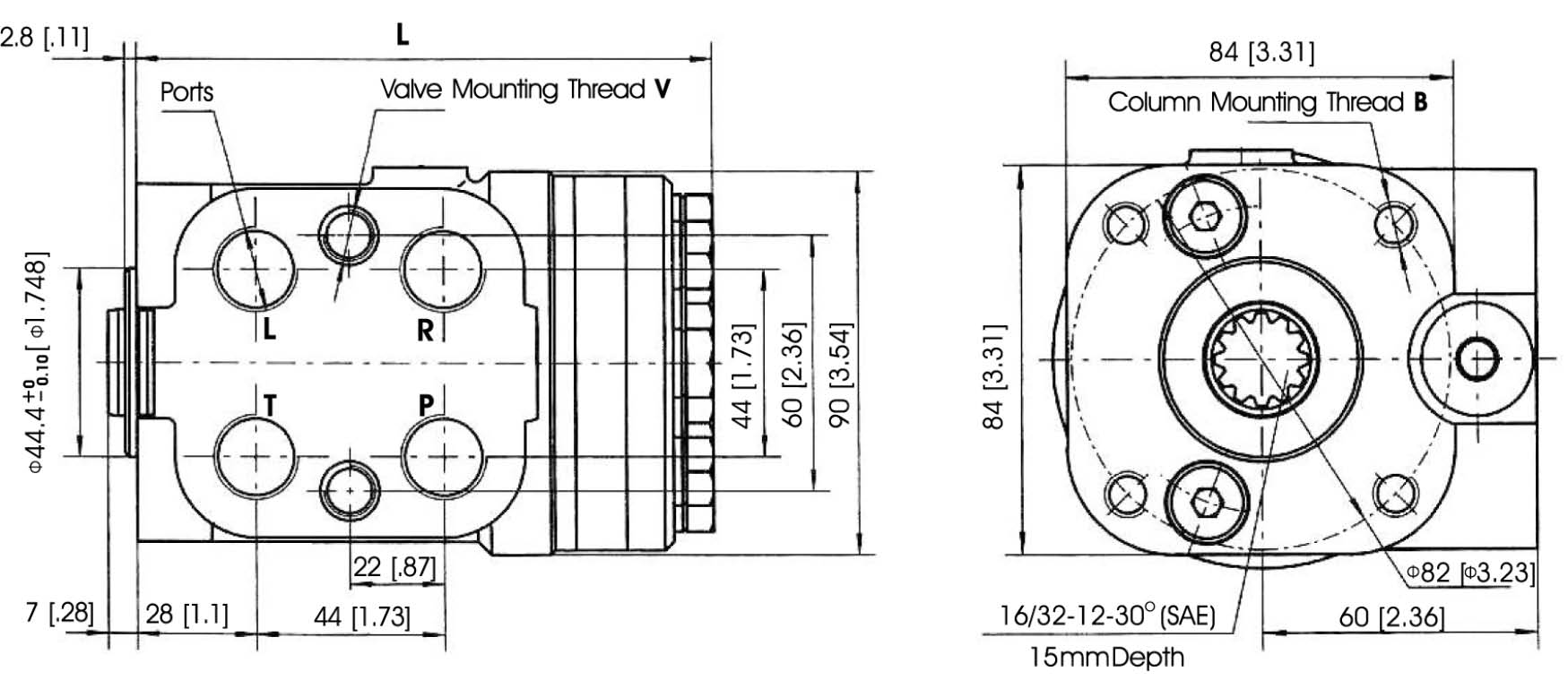

Dimensions:

Dimension HYDRAULIC STEERING UNIT CSUS_/4-160 BAR

You will find the alternative version to our competitors in our comparison data base.

Catalogue download:

Catalog Image HYDRAULIC STEERING UNIT CSUS_/4-160 BAR

Hydraulic component for integration in hydraulic systems

All our hydraulic products are new, unused and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution pertaining to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. Hydromot hydraulics – always an excellent choice at low prices!
