Assembled hydraulic hoses

Hydraulics can be so simple. Configure your  hydraulic hose now with our hydraulic hose configurator. The following hose types are available:

• Braided hose 1SN for medium pressure applications (maximum pressure 225 bar with DN 6 hose) according to EN 853-1SN
• Braided hose 1SC for medium pressure applications (maximum pressure 225 bar with DN 6 hose) according to EN 857-1SC
• Braided hose 2SN for high pressure applications (maximum pressure 400 bar with DN 6 hose) according to EN 853-2SN
• Braided hose 2SC for high pressure applications (maximum pressure 400 bar with DN 6 hose) according to EN 857-2SC
• Spiral hose 4SP for high pressure applications (maximum pressure 445 bar with DN 10 hose) according to EN 856-4SP

You can also configure high-pressure cleaners and universal hoses.

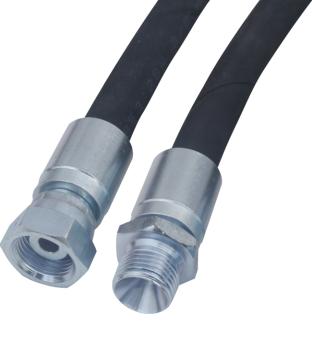

• Hydraulic hose 2SC EN 857
• 2 wire braided DN10
• 1x male AGR 3/8"
• 1x female DKR 3/8"
• working pressure 330 bar

• Hydraulic hose HY-Solution DN10 EN 857 2SC
• 2 wire braided
• 1x female DKR 3/8"
• 1x female DKR 90° 3/8"
• working pressure 330 bar
