ORFS-Dichtform, Außengewinde mit stirnseitigem O-Ring, UN-/UNF-/UNS-Gewinde
A: 11/16"-16 UN
X: 26,8 mm
L1: 53,3 mm
SW: 19
O-Ring 9,25x1,78 mm
DN6 / Size 4 / 1/4"

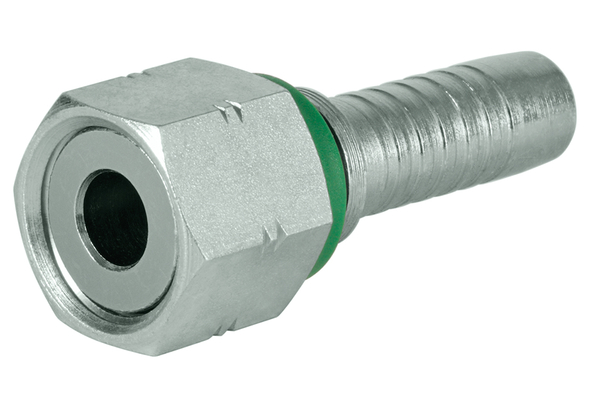

ORFS Sealing form, with union nut, UN / UNF / UNS-Thread
X: 21,9 mm
L1: 48,4 mm
SW: 22

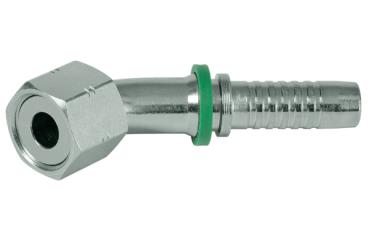

ORFS Sealing form, with union nut, 45° elbow, UN / UNF / UNS-Thread
X: 48,0 mm
L1: 74,5 mm
H: 13,0 mm (+/- 2,5 mm)

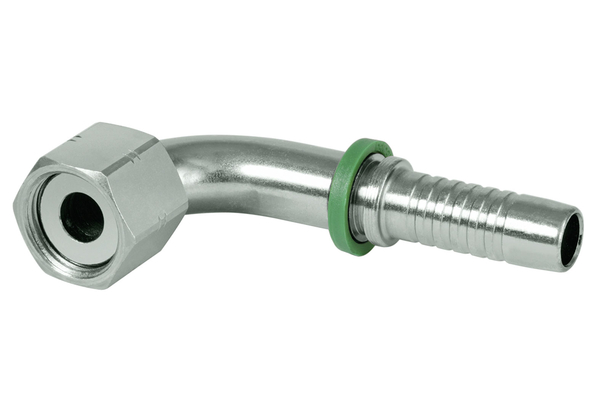

ORFS Sealing form, with union nut, 90° elbow, UN / UNF / UNS-Thread
X: 32,8 mm
L1: 59,3 mm
H: 33,0 mm (+/- 2,5 mm)
DN8 / Size 5 / 5/16"
X: 52,0 mm
L1: 78,5 mm
X: 36,0 mm
L1: 62,5 mm
H: 27,0 mm (+/- 2,5 mm)

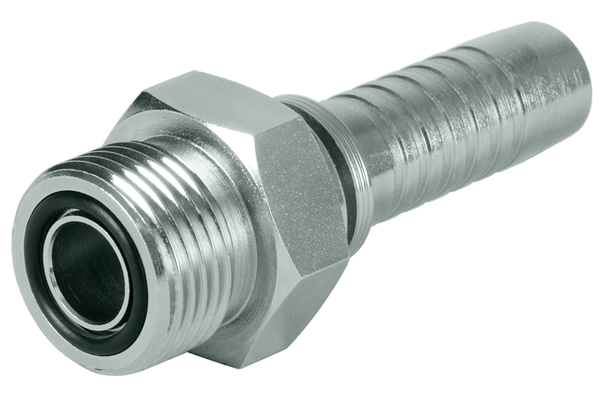

ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
A: 9/16"-18 UNF
X: 24,6 mm
L1: 51,0 mm
SW: 17
O-Ring 7,65x1,78 mm
X: 26,6 mm
L1: 60,1 mm
DN10 / Size 6 / 3/8"
X: 20,5 mm
L1: 47,0 mm
X: 29,9 mm
L1: 63,4 mm
X: 47,0 mm
L1: 73,5 mm
H: 12,0 mm (+/- 2,5 mm)
X: 43,2 mm
L1: 76,7 mm
H: 17,9 mm (+/- 2,5 mm)
X: 33,0 mm
L1: 59,5 mm
H: 24,0 mm (+/- 2,5 mm)
X: 37,0 mm
L1: 70,5 mm
H: 37,0 mm (+/- 2,5 mm)
{{.}}
{{{.}}}
