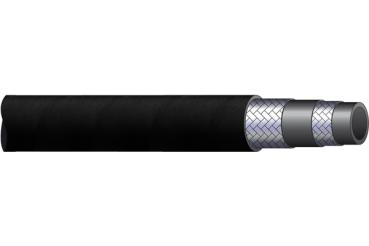

2SN (EN 853 2SN - ISO 1436 Type 2)

  • Primary application: General medium pressure hydraulic applications

  • Applicable specifications: EN 853 2SN - ISO 1436 Type 2 - SAE 100R2AT

  • Reinforcement: 2 layers of high tensile steel wire braid

  • Inner tube​: Synthetic rubber, black

  • Cover: Synthetic rubber, wear resistant, black

  • Temperature range and resistance: - 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions

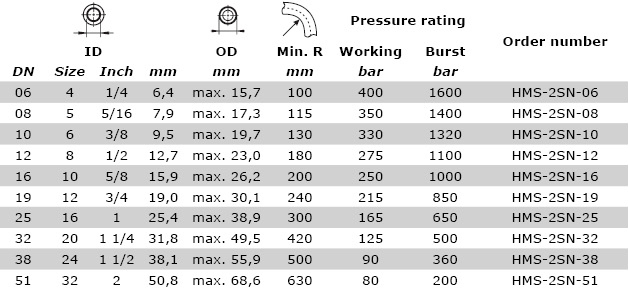

Technical data 2SN

Product image Hydraulic hose according to EN 853 - 2SN DN06
Hydraulic hose according to EN 853 - 2SN DN06

  • Nominal width: 6

  • Size: 4

  • Inch: 1/4

  • Inner diameter: 6,4 mm

  • Outer diameter: max. 15,7 mm

  • R min.: 100 mm

  • Working pressure: 400 bar

  • Burstpressure: 1600 bar

8,42 EUR
8,42 EUR per meter
7,20 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
7,20 EUR excl. 17% tax
Product image Hydraulic hose according to EN 853 - 2SN DN08
Hydraulic hose according to EN 853 - 2SN DN08

  • Nominal width: 8

  • Size: 5

  • Inch: 5/16

  • Inner diameter: 7,9 mm

  • Outer diameter: max. 17,3 mm

  • R min.: 115 mm

  • Working pressure: 350 bar

  • Burstpressure: 1400 bar
9,59 EUR
9,59 EUR per meter
8,20 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
8,20 EUR excl. 17% tax
Product image Hydraulic hose according to EN 853 - 2SN DN10
Hydraulic hose according to EN 853 - 2SN DN10

  • Nominal width: 10

  • Size: 6

  • Inch: 3/8

  • Inner diameter: 9,5 mm

  • Outer diameter: max. 19,7 mm

  • R min.: 130 mm

  • Working pressure: 330 bar

  • Burstpressure: 1320 bar
10,06 EUR
10,06 EUR per meter
8,60 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
8,60 EUR excl. 17% tax
Product image Hydraulic hose according to EN 853 - 2SN DN12
Hydraulic hose according to EN 853 - 2SN DN12

  • Nominal width: 12

  • Size: 8

  • Inch: 1/2

  • Inner diameter: 12,7 mm

  • Outer diameter: max. 23,0 mm

  • R min.: 180 mm

  • Working pressure: 275 bar

  • Burstpressure: 1100 bar
12,07 EUR
12,07 EUR per meter
10,32 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
10,32 EUR excl. 17% tax
Product image Hydraulic hose according to EN 853 - 2SN DN16
Hydraulic hose according to EN 853 - 2SN DN16

  • Nominal width: 16

  • Size: 10

  • Inch: 5/8

  • Inner diameter: 15,9 mm

  • Outer diameter: max. 26,2 mm

  • R min.: 200 mm

  • Working pressure: 250 bar

  • Burstpressure: 1000 bar
15,40 EUR
15,40 EUR per meter
13,16 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
13,16 EUR excl. 17% tax
Product image Hydraulic hose according to EN 853 - 2SN DN19
Hydraulic hose according to EN 853 - 2SN DN19

  • Nominal width: 19

  • Size: 12

  • Inch: 3/4

  • Inner diameter: 19,0 mm

  • Outer diameter: max. 30,1 mm

  • R min.: 240 mm

  • Working pressure: 215 bar

  • Burstpressure: 850 bar
18,65 EUR
18,65 EUR per meter
15,94 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
15,94 EUR excl. 17% tax
Product image Hydraulic hose according to EN 853 - 2SN DN25
Hydraulic hose according to EN 853 - 2SN DN25

  • Nominal width: 25

  • Size: 16

  • Inch: 1

  • Inner diameter: 25,4 mm

  • Outer diameter: max. 38,9 mm

  • R min.: 300 mm

  • Working pressure: 165 bar

  • Burstpressure: 650 bar
26,11 EUR
26,11 EUR per meter
22,32 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
22,32 EUR excl. 17% tax
Product image Hydraulic hose according to EN 853 - 2SN DN32
Hydraulic hose according to EN 853 - 2SN DN32

  • Nominal width: 32

  • Size: 20

  • Inch: 1 1/4

  • Inner diameter: 31,8 mm

  • Outer diameter: max. 49,5 mm

  • R min.: 420 mm

  • Working pressure: 125 bar

  • Burstpressure: 500 bar
42,19 EUR
42,19 EUR per meter
36,06 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
36,06 EUR excl. 17% tax
Product image Hydraulic hose according to EN 853 - 2SN DN38
Hydraulic hose according to EN 853 - 2SN DN38

  • Nominal width: 38

  • Size: 24

  • Inch: 1 1/2

  • Inner diameter: 38,1 mm

  • Outer diameter: max. 55,9 mm

  • R min.: 500 mm

  • Working pressure: 90 bar

  • Burstpressure: 360 bar
47,43 EUR
47,43 EUR per meter
40,54 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
40,54 EUR excl. 17% tax
Product image Hydraulic hose according to EN 853 - 2SN DN51
Hydraulic hose according to EN 853 - 2SN DN51

  • Nominal width: 51

  • Size: 32

  • Inch: 2

  • Inner diameter: 50,8 mm

  • Outer diameter: max. 68,6 mm

  • R min.: 630 mm

  • Working pressure: 80 bar

  • Burstpressure: 320 bar
61,85 EUR
61,85 EUR per meter
52,86 EUR excl. 17% tax
incl. 17% tax excl. Shipping costs
52,86 EUR excl. 17% tax
1 to 10 (from a total of 10)
